General description

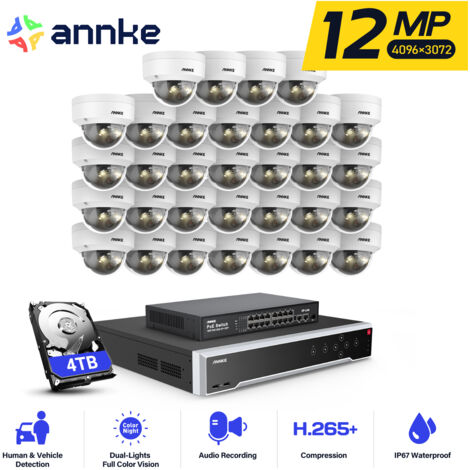

The ANNKE 12MP Wired Video Surveillance Kit includes a 32-channel NVR and 32 smart cameras equipped with dual light night vision capabilities. This comprehensive surveillance solution is designed for both indoor and outdoor use, providing high-resolution video recording and advanced motion detection features.Technical specifications
- Camera Resolution: 12 MP (4096 x 3072)
- NVR Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Max Playback Resolution: Up to 12 MP
- Max Recording Resolution: Up to 12 MP
- Incoming/Outgoing Bandwidth: 256 Mbps
- Video Output: HDMI up to 4K, VGA up to 1080p
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Camera Dimensions: Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Camera Weight: 0.6 lb. (285 g)
- NVR Dimensions: 17.5" x 15.7" x 2.8" (445 mm x 400 mm x 71 mm)
- NVR Weight: ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 12 TB capacity for each HDD (48 TB total) with 4 SATA interfaces
- Includes 16 PoE ports (IEEE802.3at/af)
- Compatible with ONVIF protocol
Installation
- Easy installation with Power over Ethernet (PoE) support
- Includes 4 SATA interfaces for hard drives
Usage
- Real-time audio monitoring with built-in microphone
- Advanced motion detection with human and vehicle recognition
- Remote access via APP/PC for monitoring
