General description

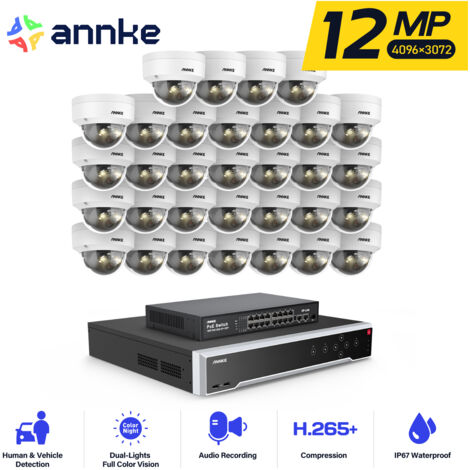

The ANNKE 12MP Wired Video Surveillance Kit includes a 32-channel NVR and 32 smart cameras equipped with dual light night vision capabilities. This comprehensive surveillance solution is designed for both indoor and outdoor use, providing high-resolution video recording and advanced motion detection features to enhance security.Technical specifications
- Camera Resolution: 12 MP (4096 x 3072)
- NVR Incoming Bandwidth: 256 Mbps
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Video Output: HDMI up to 4K (3840 x 2160), VGA up to 1080p
- Max Playback Resolution: Up to 12MP
- Max HDD Capacity: Up to 12 TB per HDD (48 TB total)
- Operating Power: NVR - 100-240V; Cameras - DC 12V ± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Camera Dimensions: Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Camera Weight: 0.6 lb. (285 g)
- NVR Dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR Weight: ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras
- Compatible with PoE (Power over Ethernet)
- Built-in microSD/SDHC/SDXC slot, supports up to 512 GB
- 4 SATA interfaces for HDD
Installation
- Easy installation with PoE support for simplified wiring
- Includes 16 PoE ports for direct camera connection
Usage
- Real-time monitoring via APP/PC
- Motion detection with human and vehicle recognition to reduce false alerts
- Audio recording with built-in microphone for enhanced security
- Remote access for playback and live viewing
Other information
