General description

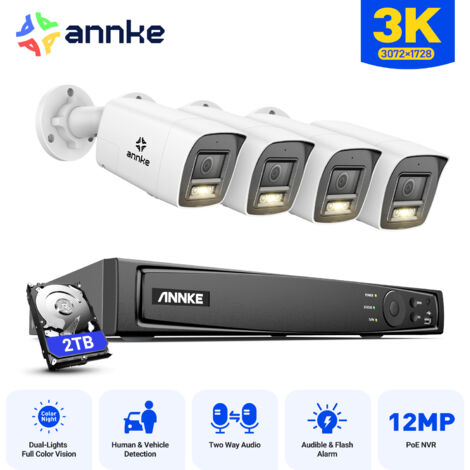

The ANNKE 8CH NVR Outdoor Security Kit includes four smart dual light cameras designed for comprehensive surveillance. With advanced features such as night vision, two-way talk, and motion detection, this kit ensures high-quality security for your property. The system supports remote access via mobile devices and PCs, making it convenient to monitor your surroundings from anywhere.Technical specifications
- NVR: Supports up to 8 IP cameras with PoE inputs
- Max Recording Resolution: Up to 12MP (4096 x 3072) at 30fps
- Video Output: HDMI up to 4K (3840 × 2160), VGA up to 1080p (1920 × 1080)
- Video Compression: H.265+/H.265/H.264+/H.264
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (without HDD and PoE)
- Dimensions (W x H x D): 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm)
- Weight (without hard disk): 2.2 lbs (1 kg)
- Camera: 1/3" Progressive Scan CMOS sensor
- Max Camera Resolution: 3K (3072 x 1728)
- Lens: 2.8 mm
- Min. Illumination: Color: 0.005 Lux, B/W: 0 Lux with IR
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- IP Rating: IP67 (weatherproof)
- Weight: Approx. 340 g (0.7 lb)
Compatibility and accessories
- Supports third-party IP cameras
- Storage: Built-in microSD/SDHC/SDXC slot, up to 512 GB
- Hard Drive Capacity: Up to 8 TB
Installation
- Easy installation with PoE support
- Includes necessary mounting hardware
Usage
- Remote monitoring via mobile app (iPhone, iPad, Android)
- Two-way audio communication
- Smart dual-light technology for enhanced night vision
- Motion detection with human and vehicle recognition
