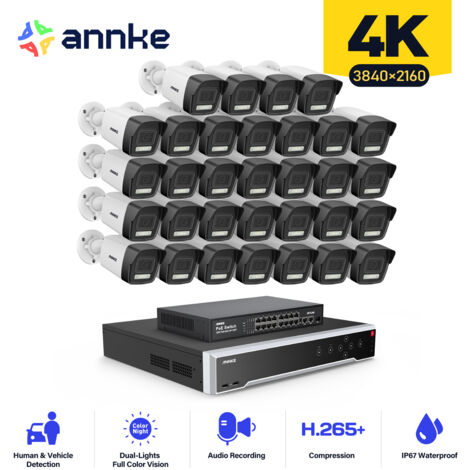

ANNKE Outdoor Video Surveillance Kit 32CH NVR 32×Cameras Email Alert, Night Vision, Motion Detection, Security System Wired Surveillance Camera APP/PC Remote Remote

Name: ANNKE Outdoor Video Surveillance Kit 32CH NVR 32×Cameras Email Alert, Night Vision, Motion Detection, Security System Wired Surveillance Camera APP/PC Remote Remote
Brand: ANNKE
SKU: AE-N931BB0-91DL*32
Price: 3441.99 GBP
Availability: InStock

~~£10,325.97~~

Sold by ANNKE Security kit

Product information

Description

General description

The ANNKE Outdoor Video Surveillance Kit is a comprehensive security solution featuring a 32-channel NVR and 32 high-definition cameras. This system is designed for both indoor and outdoor use, providing exceptional video quality and advanced features such as night vision, motion detection, and email alerts. With its robust construction and advanced technology, it ensures reliable surveillance in various environments.

Technical specifications

Recording resolution: 12 MP

Camera inputs: 32 IP camera inputs (total incoming bandwidth of 256 Mbps)

Video output: HDMI 4K (3840 × 2160)

Video compression: H.265+/H.265/H.264+/H.264/MPEG4

Storage: 4 SATA hard drive interfaces, supports microSD/SDHC/SDXC up to 512 GB

Camera sensor: 1/2.4" Progressive Scan CMOS

Max resolution: 3840*2160 (8MP)

Main stream frame rates: 50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Substream frame rates: 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Lens: 4 mm

Minimum illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Angle of view: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Operating power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

Operating temperature: -22 °F – 140 °F (-30 °C – 60 °C)

Dimensions: 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Weight: 0.6 lb. (285 g)

Installation

Installation of the ANNKE Outdoor Video Surveillance Kit involves connecting the cameras to the NVR using PoE (Power over Ethernet) for simplified wiring. Ensure that the cameras are positioned to cover the desired surveillance areas and that the NVR is connected to a power source and monitor for setup.

Usage

This surveillance system is ideal for monitoring residential and commercial properties. Users can access live feeds and recorded footage remotely via an app or PC, allowing for real-time surveillance and alerts. The advanced motion detection feature minimizes false alarms by focusing on human and vehicle detection.

Other information

Features

Brand
ANNKE
Width
6.6 cm
Height
6.6 cm
Voltage
12 V
Material
Plastic
