General description

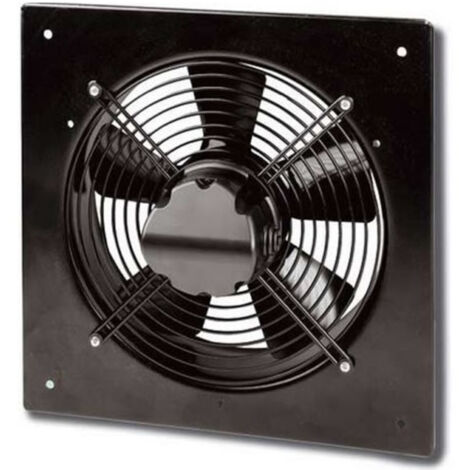

The Axial wall fan CasaFan EQ T 400 V is designed for efficient air circulation in commercial and industrial environments such as laundry rooms, restaurants, workshops, and laboratories. It features a robust construction with a galvanised steel sheet housing that is powder-coated for durability. The fan operates at a voltage of 400 Volt and is suitable for continuous operation in temperatures ranging from -25°C to +55°C.Technical specifications
- Voltage: 400 Volt ~ 50/60 Hertz
- Speed levels: 1 (speed controller sold separately)
- Insulation class: I
- Maintenance-free, ball-bearing external rotor motor
- Reversible operation via external reversing switch (not included)
- Performance in reverse: approximately 67% (requires additional motor or manual shutter cover flap)
- Internal protection grille: removable for cleaning and maintenance
- High-performance impeller: statically and dynamically balanced
| Model | Power (W) | Current consumption (A) | Rotation speed (rpm) | Airflow (m³/h) | Total pressure Pmax (Pa) | Sound pressure Lp-2m (dB(A)) | Weight (kg) | IP code |
|---|---|---|---|---|---|---|---|---|
| EQ 20/4 T | 20 | 0.1 | 1400 | 500 | 80 | 45 | 2 | IP44 |
| EQ 25/4 T | 25 | 0.1 | 1400 | 1000 | 100 | 52 | 3 | IP44 |
| EQ 30/4 T | 55 | 0.2 | 1400 | 1900 | 125 | 59 | 4.2 | IP44 |
| EQ 35/4 T | 130 | 0.4 | 1400 | 3400 | 130 | 63 | 5 | IP44 |
| EQ 40/4 T | 195 | 0.5 | 1400 | 4400 | 160 | 63 | 8 | IP44 |
| EQ 50/4 T | 530 | 1.3 | 1400 | 9000 | 170 | 74 | 17 | IP54 |
| EQ 60/6 T | 510 | 1.3 | 950 | 11200 | 80 | 65 | 22 | IP54 |
Compatibility and accessories
Optional accessories are available in our shop.Installation
No specific installation information provided.Usage
No specific usage information provided.Other information
