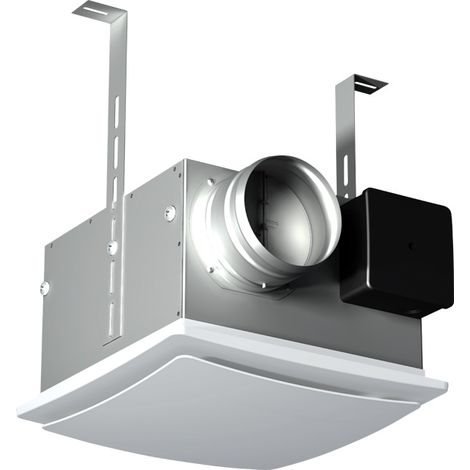

Ceiling-mounted Extractor fan VP 100 K

Name: Ceiling-mounted Extractor fan VP 100 K
Brand: VENTS
SKU: VP 100 K
Price: 149 GBP
Availability: InStock

Sold by creoven

Product information

Description

General description

The Ceiling-mounted Extractor Fan VP 100 K is designed for efficient air extraction in commercial, industrial, or office buildings. It features a robust construction with a silver housing and a white cover plate, making it both functional and aesthetically pleasing.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Wattage: 61 W

Current consumption: 0.26 A

Revolutions per minute: 2500

Airflow rate: 240 m³/h

Sound pressure level Lp-3m: 47 dB(A)

Max. temperature for transported air: -25 to +45°C

IP code: IPX4

Weight: 3.4 kg

Housing material: steel, ABS

Housing colour: silver, cover plate white

Nominal size: 100 mm

Compatibility and accessories

Includes mounting bracket for installation between ceiling and suspended ceiling (min. distance 165 – 390 mm)

Integral return valve prevents cold air from infiltrating the system

Includes filter

Thermal overload protection

Installation

Mounting options are available for ceiling installation, ensuring a secure fit in various settings.

Usage

This extractor fan is ideal for air extraction systems in commercial, industrial, or office buildings, providing effective ventilation and air quality control.

Other information

Dimensions in mm	Ø D	B	H	H1	L
VP 100 K	100	240	160	189	305

Features

Brand
VENTS
Colour
Grey
IP rating
IPX4
Material
Steel
Air flow
240 m³/h
Integrated non-return valve
Yes
Weight
3400 g
Power
61 W
Noise level
47 dB
Pcs per pack
1
Type of lawn aerator
Classic
ManoMano Reference
ME49649455
MMID
870428067981
Product code
VP 100 K
EAN
4824032040430
