Coilovers Kit for Vauxhall Corsa D 1.6Turbo VXR 06-14 1.7 CDTi 1.4 LPG 1.3 1.2

Application:

for Alfa Romeo Mito (Type 955) 2008-2018

for Vauxhall Corsa D (S07) 2006-2014

for Fiat Grande Punto (199) 2005-2018

Specification:

Height adjustable: Front & Rear (depends on your vehicle)

Front Lowering: 30-85mm

Rear Lowering: 30-65mm

Damping : fixed damping

Top mounts: Front and rear OE top mounts required

Spring rate Front: 7 kg/mm (392 lbs/in)

Spring rate Rear: 4 kg/mm (224 lbs/in)

Front spring inner diameter: 64-73.5 mm

Rear spring inner diameter: 62-96.5 mm

Spring length Front: 151 mm

Spring length Rear: 182 mm

Helper spring rate Front: 1 kg/mm (56 lbs/in)

Helper spring length Front: 102 mm

Spring Preload advised: 7-10 mm

Shock Type: Twin Tube

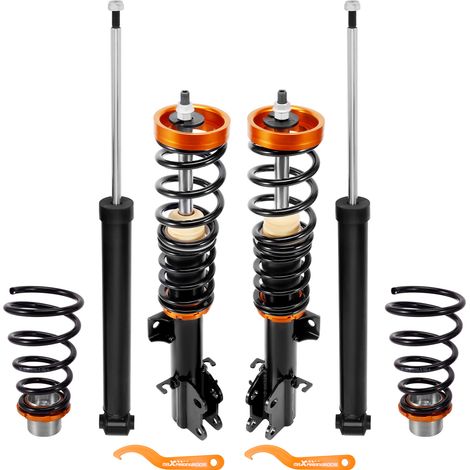

Package included:

2x Front coil-overs

2x Rear coil-overs

2x C spanners

Feature:

1. Lower height adjustable (depends on vehicle models)

2. Dust boot, solid rubber bump stops

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets

4. Simple install, Easy to adjust.

5. Use the vehicle's original upper mounts (not included in our product kit).

Note:

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
