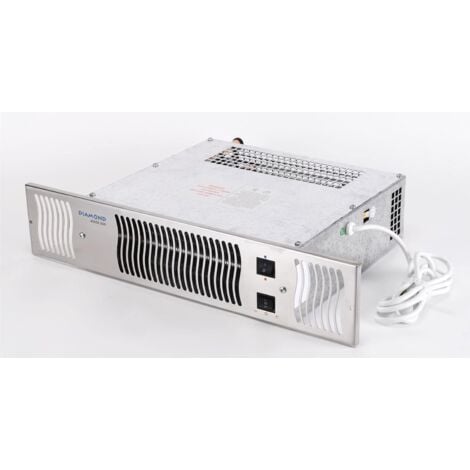

Diamond 500 Central Heating Kitchen Plinth Heater: Stainless Steel Grille Under Cupboard Heater

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Manissa

Product information

Description

General description

The Diamond 500 plinth heater is a high-quality heating solution designed for kitchens. It utilizes the space under cupboards, maximizing your kitchen work area by freeing up valuable wall space. This unit connects directly to your central heating system and fits neatly in the plinth space, circulating heat into the room through a low noise two-speed fan. The fan convector operates automatically with the central heating system, making it more cost-effective than electric-only heaters and preventing overheating from dust accumulation.

Technical specifications

Heat Output: Normal 896 watt (3057 BTU) / Boost 1166 watt (3979 BTU)

Maximum working pressure: 10 bar (1MPa)

Water connections: 15mm compression

Electrical supply: 220-240v - 50Hz

Noise levels in accordance with EN23741

Level floor area is required under the cupboard base

Guarantee: 2 years

What's Included

Diamond 500 Plinth Heater unit

Coloured fascia grille

2x 700mm long 15mm flexible hoses with isolating valves

Grille screw fixing kit

Instruction Manual

Installation

Easy to install under the cupboard base

Connects directly to the central heating system

Usage

Automatically switches on and off with the central heating system

Temperature switch detects hot water and activates the fan

Manual fan boost option available for additional heat

Manual override to turn off the fan if not required

Features

Brand
GREENEDHOUSE
Power
1200 W
Colour
Multicolour
Material
Stainless steel
With fixings supplied
Yes
Pipe thread size
1/2" (15x21)
Height
100 mm
Width
32 cm
Weight
5 kg
Energy type
Hot water
Radiator type
Hot water
ManoMano Reference
ME12798970
MMID
846480976502
Product code
Bidex500 + Stainless Grill
EAN
718598031336

Customer reviews

4,0

/ 5 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 16/09/2025, United Kingdom

Good construction easy connections and well finished materials fitted very well under kitchen units in short does what it says on the box

MManoMano Customer

Published on 13/06/2025, United Kingdom

Quick delivery, fits well, highly recommend
