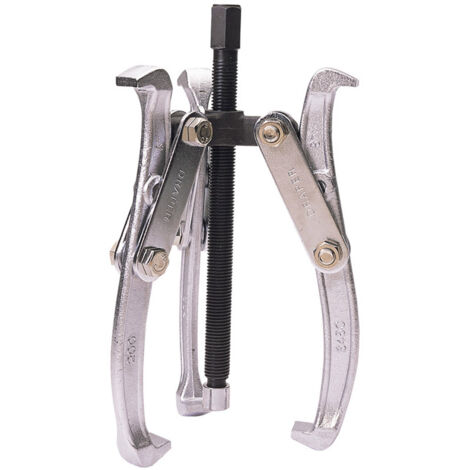

Draper Triple Leg Reversible Puller with 102mm Reach and 110mm Spread – Model 13909

Description

• This is a triple-leg reversible puller designed for both external and internal pulling of gears, bearings, and similar components. It features forged carbon steel legs with long and short reach options, allowing versatile use. The yoke and thrust bolt are made from durable carbon steel, ensuring strength and reliability. The screw has a rolled thread with a chemically blackened finish for corrosion resistance and smooth operation.

Technical Specifications

• Reach: 102mm
• Spread: 110mm
• Legs: Forged carbon steel with long and short reach options
• Yoke and Thrust Bolt: Made from carbon steel
• Screw: Rolled thread with blackened finish

Compatibility and Accessories

• Suitable for pulling gears, bearings, and similar components internally or externally
• Compatible with standard puller accessories

Installation

• Adjust the legs to fit the component size
• Secure the puller onto the part to be removed
• Use the screw to apply force and extract the component

Usage

• Ensure the puller is properly aligned before applying force
• Turn the screw clockwise to pull out the component
• Use with appropriate safety precautions during operation

Other Information

• This product is manufactured by Draper and is designed for professional and DIY use in maintenance and repair tasks.
