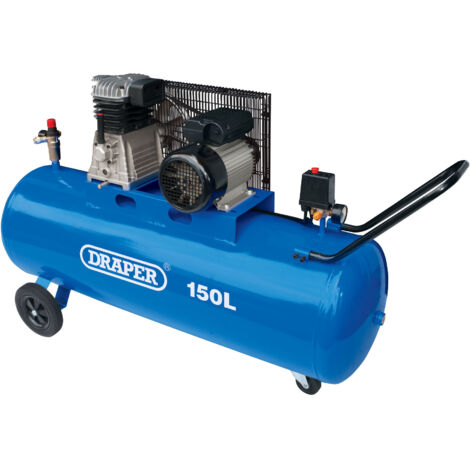

Draper 150L Belt-Driven Air Compressor with 2.2kW (3HP) Motor, 230V, 13A, on Wheels

Description

• This is a high-capacity belt-driven air compressor suitable for workshop use. It features thermal motor protection overload, an on/off pressure switch, pressure regulator, and a pressure gauge for precise control. The compressor is equipped with rubber wheels and a transport handle for easy mobility. It also has a quick euro coupling outlet for efficient air connection.

Technical Specifications

• Tank size: 150 liters
• Motor power: 2.2 kW (3.0 HP)
• Air displacement: 13.03 CFM (369 L/min)
• Free air delivered (FAD): 8.44 CFM (239 L/min)
• Input current: 13A
• Speed: 1100 rpm
• Maximum pressure: 145 psi (10 bar)
• Dimensions: 1280 x 480 x 950 mm
• Weight: 102 kg

Compatibility and Accessories

• Compatible with standard air tools and accessories that use euro couplings

Installation

• Place the compressor on a stable, level surface in a well-ventilated area
• Connect air hoses to the quick euro coupling outlet
• Ensure electrical connections comply with local safety standards

Usage

• Switch on the compressor using the on/off pressure switch
• Adjust the pressure regulator to the desired pressure setting
• Use the connected air tools as needed

Other Information

• Designed for continuous workshop use with durable construction
