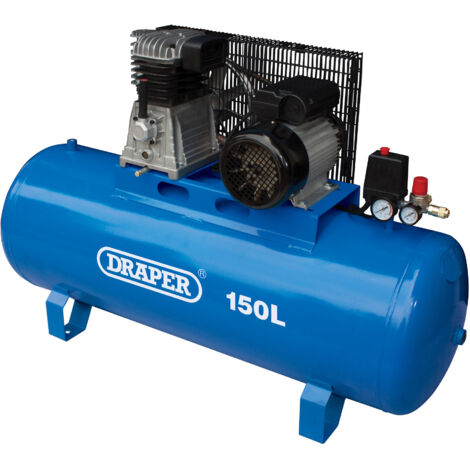

Draper 150L 2.2kW (3HP) Belt-Driven Stationary Air Compressor – 150L Capacity, 230V, Model 55304

General Description

• This is a high-capacity belt-driven air compressor designed for workshop use. It features a durable thermal motor protection overload, an on/off pressure switch, a pressure regulator, and a pressure gauge. The compressor is equipped with a quick euro coupling outlet for easy connection of air tools and accessories.

Technical Specifications

• Tank Capacity: 150 liters
• Motor Power: 2.2 kW (3.0 HP)
• Air Displacement: 13.03 CFM (369 L/Min)
• Free Air Delivered (FAD): 8.44 CFM (239 L/Min)
• Input Current: 13A
• Speed: 1100 rpm
• Maximum Pressure: 145 psi (10 bar)
• Dimensions: 1280 x 480 x 950 mm
• Weight: 98 kg

Compatibility and Accessories

• Compatible with various workshop air tools and accessories that utilize a euro coupling connection

Installation

• Ensure the compressor is placed on a stable, level surface in a well-ventilated area
• Connect the air outlet to your tools using a compatible euro coupling
• Check all connections and ensure safety devices are properly installed before operation

Usage

• Switch on the compressor using the on/off pressure switch
• Adjust the pressure regulator to the desired pressure for your tools
• Use the pressure gauge to monitor the air pressure during operation
• Turn off the compressor when not in use and drain moisture if necessary

Other Information

• This compressor is suitable for continuous workshop use and heavy-duty applications. Regular maintenance is recommended to ensure optimal performance and longevity.
