General description

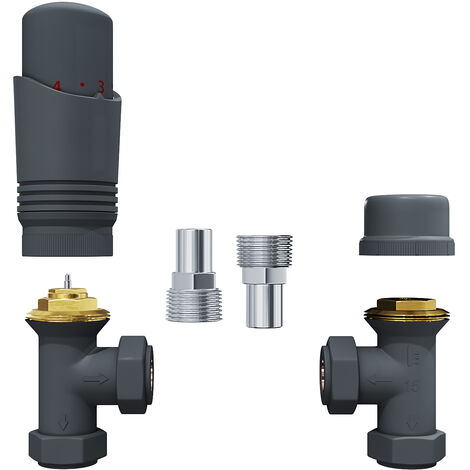

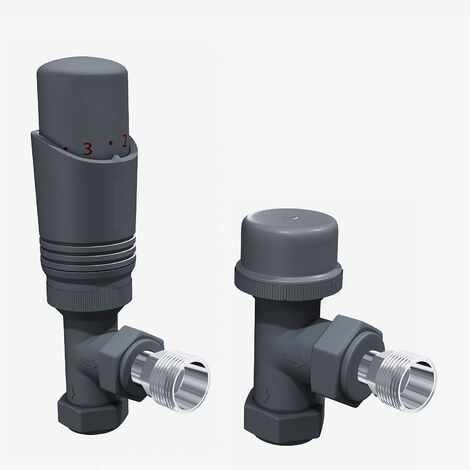

The ELEGANT Anthracite Angled Thermostatic Radiator Valve Pack includes a pair of stylish and practical valves designed to control the output of a single radiator and adjust room temperature. This compact and cost-effective solution meets British standards and is suitable for any central heating radiator or towel radiator. Available in three colors—white, anthracite, and chrome—these valves can enhance your home decor while ensuring a warm and comfortable environment year-round.Technical specifications
- Colour: Anthracite
- Material: Brass H58-3 or CW617N
- Processing: Forging, CNC Machining

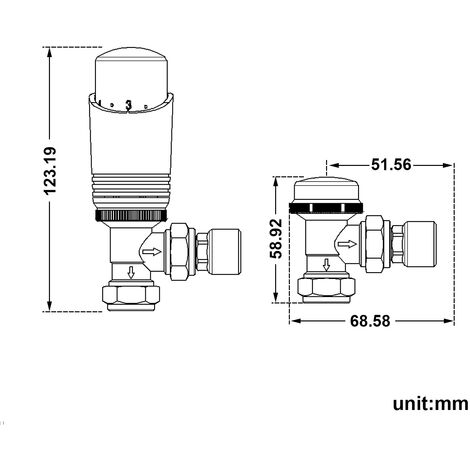

- Size: G1/2''*15mm
- Working Medium: Hot/Cold Water
- Range of Temperature Adjustment: 7 ~ 28 Degrees Centigrade
- Range of Scale: 0 ~ 5
- Max Working Pressure: 10 bar
- Max Pressure Difference: 0.6 bar
- Max Working Temperature: 50 Degrees Centigrade
- Max Medium Temperature: ≤ 100 Degrees Centigrade
- Influence of Pressure Difference: 0.4K
- Influence of Temperature Difference: 0.5K
- Nominal Flow Rate: 90L/min
- Test Standard: EN215
- Temperature Range: 7, 12, 16, 20, 24, 28 Degrees Centigrade
Compatibility and accessories
This product is directly applicable to towel racks, radiators, or other compatible equipment. For a compatible radiator, search "Elegant Radiator".Installation
The installation requires an internal thread G1/2 interface for the radiator and towel rail, with a 15mm copper pipe. If the existing setup differs, an adapter may be necessary. Please refer to the packing list and installation instructions for guidance.Other information
