General description

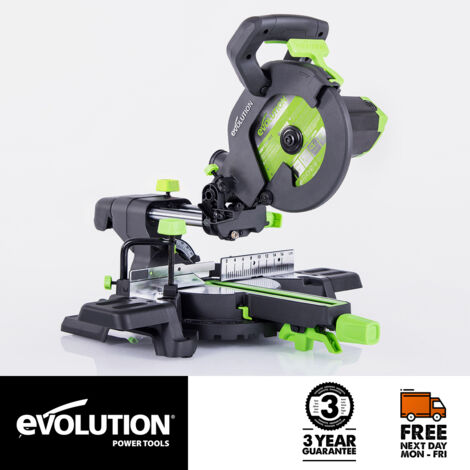

The Evolution F210SMS Multi-Material Sliding Mitre Saw is designed for versatility and precision, utilizing patented Evolution multi-material cutting technology. This powerful saw can cut through mild steel, non-ferrous metals, wood (including wood with embedded nails), and plastic with a single blade. It features laser guidance for optimum accuracy and a robust outer casing for enhanced durability. The saw operates cooler than traditional abrasive metal cutting saws, producing clean cuts with no heat, burrs, or sparks, resulting in an instant workable finish.Technical specifications
- Motor (240V 50Hz): 1200W
- No Load Speed: 3750 rpm
- Max Bevel (Left): 45 degrees
- Max Mitre: 50 degrees - 50 degrees
- Cable Length: 2m
- Blade Diameter: 210mm
- Number of Teeth: 20
- Bore: 25.4mm
- Kerf: 1.7mm
- Max Cross Cut (0 degrees x 0 degrees): 230mm x 65mm
- Max Bevel Cut (0 degrees x 45 degrees): 230mm x 38mm
- Max Mitre Cut (45 degrees x 0 degrees): 150mm x 65mm
- Max Compound Cut (45 degrees x 45 degrees): 150mm x 38mm
- Mild Steel Plate (Max. Thickness): 3mm
- Mild Steel Box Section (Max. Wall Thickness): 3mm
- Product Dimensions: 314mm x 575mm x 610mm
- Packaging Dimensions: 420mm x 290mm x 310mm
- Product Weight: 10.9 kg
- Packaged Weight: 12.8 kg
- Sound Pressure Level LPA: 96.5 dB(A)
- Sound Power Level LWA: 109.5 dB(A)
- Uncertainty K: KpA & KWA: K=3 dB(A)
Items Supplied
- 20T Multi-Material TCT Blade
- Hold Down Clamp
- Machine Table Extensions
- Double Ended Hex Key (M6 & M4)
- Rotary Table And Neck
- Cutting Head
- Carriage Slides
- Mitre Locking Knob
- Mains Cable Guide/Clamp (1 Fitted)
- Self Tapping Cap Screw
- Socket Headed Screws
- Cable Clamp Component
- Laser Lens Cap (Fitted)
Compatible With
- 210mm Multi-Material Cutting TCT Blade
- 210mm Diamond Masonry Cutting Blade
- 210mm Wood Cutting Blade
- Mitre Saw Stand
