General description

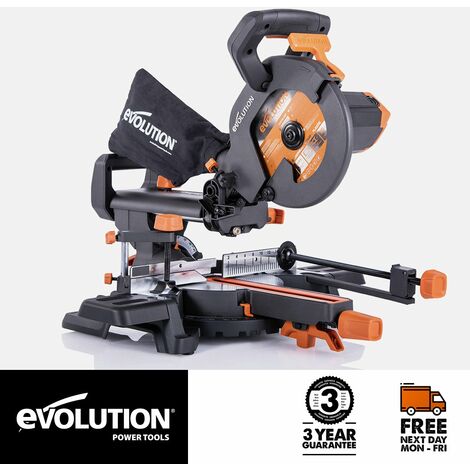

The Evolution R210SMS+ is a versatile 210mm sliding compound mitre saw designed for precision and efficiency. Utilizing patented multi-material cutting technology, this saw can handle a variety of materials including mild steel, wood (even with embedded nails), and plastic with a single tungsten carbide tipped blade. It features laser guidance for accurate cuts, adjustable bevel and mitre settings, and a powerful 1500W motor, making it an excellent choice for both professionals and DIY enthusiasts.Technical specifications
- Motor Power: 1500W (110V and 240V)
- No Load Speed: 3750 min-1
- Max Mitre: 50 degrees - 50 degrees
- Max Bevel (Left): 45 degrees
- Blade Diameter: 210mm
- Number of Teeth: 24
- Bore: 25.4mm
- Kerf: 1.7mm
- Max Cross Cut (0 degrees x 0 degrees): 230mm x 65mm
- Max Bevel Cut (0 degrees x 45 degrees): 230mm x 38mm
- Max Mitre Cut (45 degrees x 0 degrees): 150mm x 65mm
- Max Compound Cut (45 degrees x 45 degrees): 150mm x 38mm
- Mild Steel Plate (Max Thickness): 6mm
- Mild Steel Box Section (Max Wall Thickness): 3mm
- Product Dimensions: 314mm x 575mm x 610mm (with saw head down)
- Packaging Dimensions: 475mm x 315mm x 435mm
- Product Weight: 11.2 kg
- Packaged Weight: 13.8 kg
- Sound Pressure Level LPA: 110V: 95.7 dB(A) / 220-240V: 96.5 dB(A)
- Sound Power Level LWA: 110V: 108.7 dB(A) / 220-240V: 109.5 dB(A)
- Laser Class: Class 2
- Laser Source: Laser Diode
- Laser Output Power (Max): <1mW
- Wave Length (Nm): 650
Compatibility and accessories
- Compatible with 210mm Multi-Material Cutting TCT Blade
- Compatible with 210mm Diamond Masonry Cutting Blade
- Compatible with 210mm Wood Cutting Blade
- Compatible with Evolution Mitre Saw Stand (sold separately)
Installation
- Integrated carry handles for easy transport
- Slide rail protector to prevent damage and dust ingress
Usage
- Ideal for cross cuts, mitre cuts, bevel cuts, and compound cuts
- Includes dust collection bag and dust port adaptor for vacuum extraction
- Dual quick-release clamps for added accuracy and faster adjustments
Other information
- Items supplied: 24T Multi-Material TCT Blade, 3pc Hold Down Clamp, Machine Table Extensions, Dust Collection Bag, Dust Port Adaptor, Double Ended Hex Key (M6 & M4), Laser Lens Cap, Sliding Rail Protector, Front Clamp, Rear Carry Handle, 3m Cable
