General description

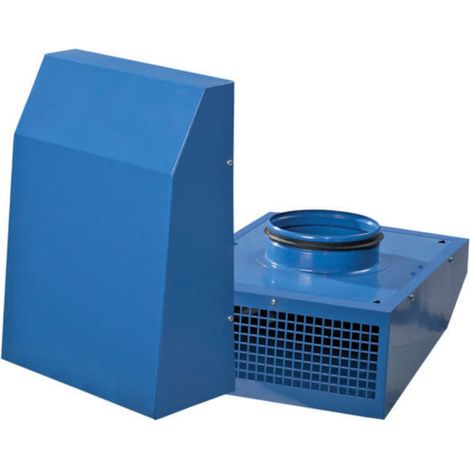

The External Wall Centrifugal Fan VCN 100 is designed for efficient air extraction in various settings, including homes, commercial spaces, and industrial buildings. With a powerful airflow rate of up to 325 m³/h, this fan ensures effective ventilation and air circulation.
Technical specifications
- Voltage: 230 V ~ 50 Hz
- Max. wattage: 71 W
- Max. current consumption: 0.31 A
- Max. revolutions per minute: 2530
- Max. airflow rate: 325 m³/h
- Sound pressure level Lp-3m: 54 dB(A)
- Max. temperature for continuous operation: 55°C
- IP code: IPX4
- Weight: 3.82 kg
- Housing material: powder-coated steel
- Housing colour: blue
- Nominal width: 100 mm
- Includes thermal overload protection and protective grille against birds and rodents
Other information
| Ø D (mm) | B (mm) | H (mm) | L (mm) | |
|---|---|---|---|---|
| VCN 100 | 99 | 260 | 355 | 138 |
