General description

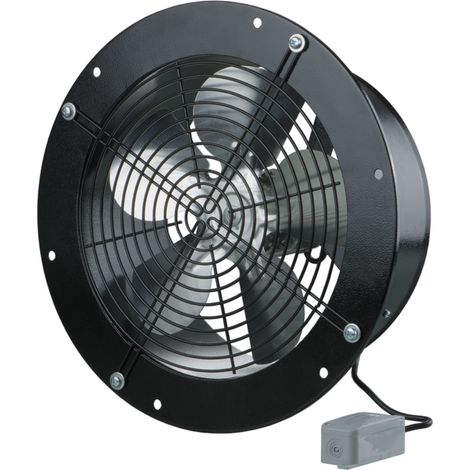

The OVK1 200 wall fan is designed for efficient air supply or extraction, making it suitable for ventilation systems with low air resistance and a high demand for airflow. With a powerful airflow rate of up to 405 m³/h, this fan is ideal for various applications.Technical specifications
- Voltage: 230 V ~ 50 Hz
- Housing colour: black
- Housing material: powder-coated steel
- Nominal size: 200 mm
- Wattage: 43 W
- Current consumption: 0.28 A
- Revolutions per minute: 1300
- Airflow rate: 405 m³/h
- Sound pressure level Lp-3m: 33 dB(A)
- Max. temperature of transported air: -30 to +40°C
- IP code: IP24
- Weight: 2.5 kg
- Thermal overload protection
Other information
| Dimensions in mm | Ø D | Ø D1 | Ø D2 | Ø d | L |
|---|---|---|---|---|---|
| OVK1 200 | 208 | 270 | 300 | 7 | 120 |
