Extractor fan System Silent Escudo Graphite 100 H

Product out of stock

Product information

Description

General description

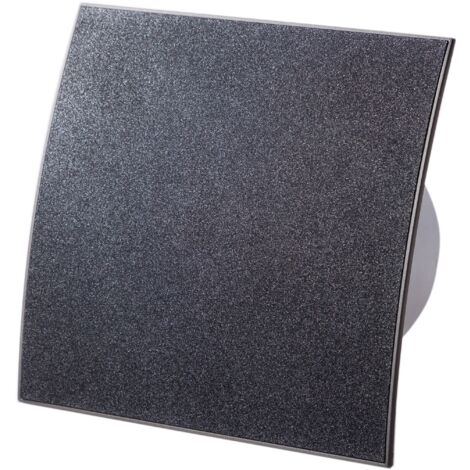

The Extractor Fan System Silent Escudo Graphite 100 is designed for efficient ventilation in various settings. With its sleek graphite front panel made of durable ABS plastic, this fan combines functionality with modern aesthetics.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal size: 100 mm

Speed levels: 1

Wattage: 5 W

Revolutions per minute: 1900

Max. airflow rate: 75 m³/h

Sound pressure level Lp-3m: 26 dB(A)

Total pressure Pmax.: 26 Pa

IP rating: IPX4

Max. ambient temperature: +40°C

Diameter pipe connection: 100 mm

Front cover dimensions: 160 x 160 x 30 mm

Total depth: 118 mm

Weight: 0.7 kg

Other information

Adjustable shut-off timer (3-30 min)

Humidity sensor (40-90%): fan turns off after expiration of the pre-set time once the humidity level falls below the pre-set value

Mounting options: wall, ceiling

Application: direct connection to the ventilation shaft

Features

Brand
AWENTA
Colour
Grey
Width
10 cm
Power
5 W
Max. flow rate
75 m³/h
Intended use
Indoor
Height
3 cm
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Operating Mode
Electric
Weight
0.7 kg
Depth
11.8 cm
Noise level
26 dB
Fan type
Ceiling fan
ManoMano Reference
ME51228464
MMID
208459877063
Product code
1353206176
EAN
0745203005956
