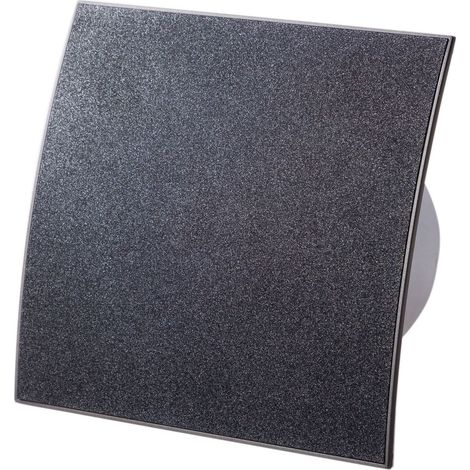

Extractor fan System Silent Escudo Graphite 100

Sold by creoven

Often purchased together

Product information

Description

Dimensions and technical details

220-240 V ~ 50 Hz
Front panel colour: graphite
Front panel material: ABS plastic
Nominal size: 100 mm
Speed levels: 1
Wattage: 5 W
Revolutions per minute: 1900
Max. airflow rate: 75 m³/h
Sound pressure level Lp-3m: 26 dB(A)
Total pressure Pmax.: 26 Pa
IP rating: IPX4
Max. ambient temperature: +40°C
Diameter pipe connection: 100 mm
Front cover: 160 x 160 x 30 mm
Total depth: 118 mm
Weight: 0.7 kg
On / off via light switch (to be provided on-site)
Mounting options: wall, ceiling
Application: direct connection to the ventilation shaft

Features

Brand
AWENTA
Colour
Grey
Shape
Square
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
