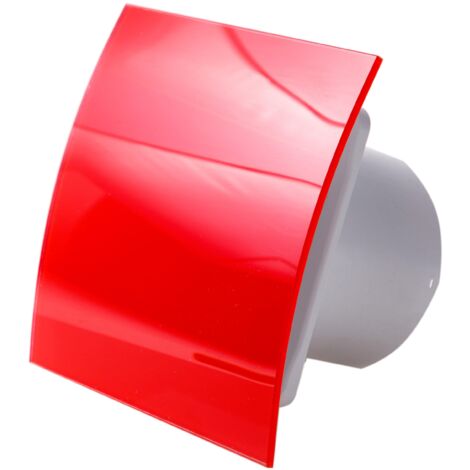

Extractor fan System Turbo Escudo Red 100 CTR

Product information

Description

General description

The Extractor Fan System Turbo Escudo Red 100 CTR is designed for efficient ventilation with a stylish glossy red front panel made of glass. It features multiple speed levels and an adjustable timer, making it suitable for various applications.

Technical specifications

Operating voltage: 220-240 V ~ 50 Hz

Nominal size: 100 mm

Speed levels: 4

Wattage: 5 / 8 / 9 / 14 W

Max. revolutions per minute: 2400

Airflow rate: 44 / 77 / 87 / 110 m³/h

Sound pressure level Lp-3m: 19 / 30 / 34 / 36 dB(A)

Total pressure Pmax.: 10 / 26 / 32 / 40 Pa

IP rating: IPX4

Max. ambient temperature: +40°C

Diameter pipe connection: 100 mm

Front cover dimensions: 160 x 160 x 30 mm

Total depth: 118 mm

Weight: 0.7 kg

Installation

Mounting options: wall

Application: direct connection to the ventilation shaft

Usage

Speed regulation via push button

Adjustable timer: 5 / 10 / 20 / 30 min shut-off delay, 1 - 10 h interval

Features

Brand
AWENTA
Width
10 cm
Height
11.8 cm
Depth
11.8 cm
Diameter
10 cm
