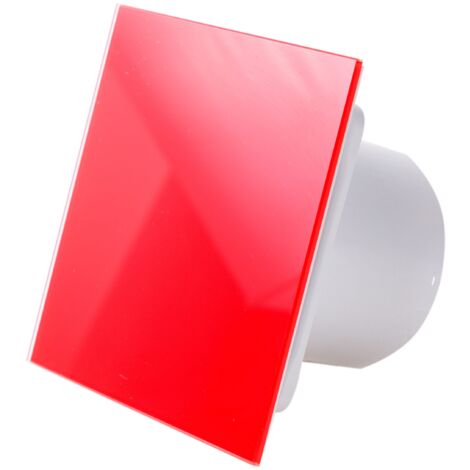

Extractor fan System Turbo Trax Red 100 T

Often purchased together

Product information

Description

General description

The Extractor Fan System Turbo Trax Red 100 T is designed for efficient ventilation in various settings. With a sleek glossy red front panel made of glass, this fan combines aesthetics with functionality.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal size: 100 mm

Wattage: 13 W

Speed levels: 1

Revolutions per minute: 2400

Max. airflow rate: 110 m³/h

Sound pressure level Lp-3m: 36 dB(A)

Total pressure Pmax.: 40 Pa

IP rating: IPX4

Max. ambient temperature: +40°C

Diameter pipe connection: 100 mm

Front cover dimensions: 159 x 159 x 38 mm

Total depth: 126 mm

Weight: 0.7 kg

Adjustable shut-off timer: 3-30 min

Installation

Mounting options: wall

Application: direct connection to the ventilation shaft

Features

Brand
AWENTA
Colour
Red
IP rating
IPX4
Material
Glass
Air flow
110 m³/h
Duct diameter
100 mm
Height
15.9 cm
Weight
700 g
Depth
12.6 cm
Power
13 W
Noise level
36 dB
Pcs per pack
1
Type of lawn aerator
Classic
Type of installation method
For mounting
ManoMano Reference
ME56239598
MMID
197608826416
Product code
1353206750
EAN
0745203008056

Advice from

Bathroom extractor fan buying guide

Bathroom extractor fans renew stale air. The flow rate required to circulate the air is calculated using a formula based on the size of the bathroom. Air extractors, MEV systems, window or centrifugal extractor fans, read on for our tips on how to ventilate and banish humidity from the bathroom.
