Eye Grab Hook Grade 100 10MM (G100 4 Ton Lifting Chain Sling Shortening Clutch)

Name: Eye Grab Hook Grade 100 10MM (G100 4 Ton Lifting Chain Sling Shortening Clutch)
Brand: SECUREFIX DIRECT
SKU: SFG10EGH10
Price: 15 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by SecureFix Direct

Product information

Description

General description

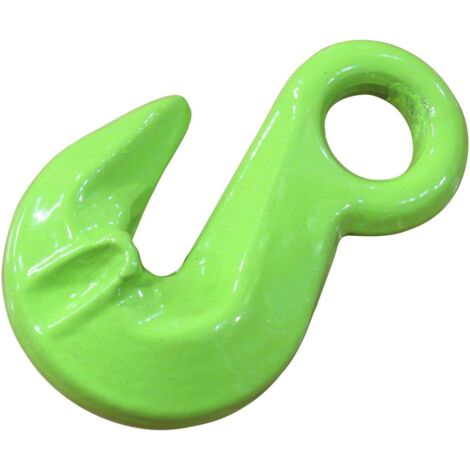

Eye Grab Hook Grade 100 10MM is a high-quality lifting accessory designed for use in the lifting gear industry, specifically for chain slings. This eye type grab hook allows for easy attachment of chain, enabling users to shorten the chain to meet their lifting requirements. Made from Grade 100 material, these hooks are lighter yet stronger than their Grade 80 counterparts, ensuring durability and reliability in lifting applications.

Technical specifications

Chain Size: 10MM

Material: Grade 100

Finish: Light Green (Colour May Vary)

Factor of Safety: 4:1

Conforms to: ASTM A952

Product Codes and Specifications:

Product Code: SFG10EGH06 - SWL: 1.5 Tonne, A: 13.5 MM, B: 46 MM, C: 73 MM, D: 7.5 MM, E: 9 MM, F: 22 MM

Product Code: SFG10EGH08 - SWL: 2.5 Tonne, A: 18 MM, B: 62 MM, C: 93 MM, D: 11 MM, E: 9 MM, F: 29 MM

Product Code: SFG10EGH10 - SWL: 4 Tonne, A: 21 MM, B: 82 MM, C: 126 MM, D: 12.8 MM, E: 15 MM, F: 42.5 MM

Product Code: SFG10EGH13 - SWL: 6.7 Tonne, A: 27.5 MM, B: 105.5 MM, C: 160 MM, D: 17 MM, E: 17 MM, F: 52 MM

Product Code: SFG10EGH16 - SWL: 10 Tonne, A: 30 MM, B: 107 MM, C: 168 MM, D: 21 MM, E: 21 MM, F: 70 MM

Usage

This eye grab hook is primarily used in conjunction with chain slings, allowing for efficient lifting and load management. By attaching the chain to the grab hook, users can easily adjust the length of the chain to suit their specific lifting needs.

Other information

*Test Certificate Will Be Supplied Via Email*

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Pcs per pack
1
Maximum load
4000 kg
Material
Two-material
Weight
100 g
ManoMano Reference
ME54526015
MMID
893946743836
Product code
SFG10EGH10
EAN
0600988492134
