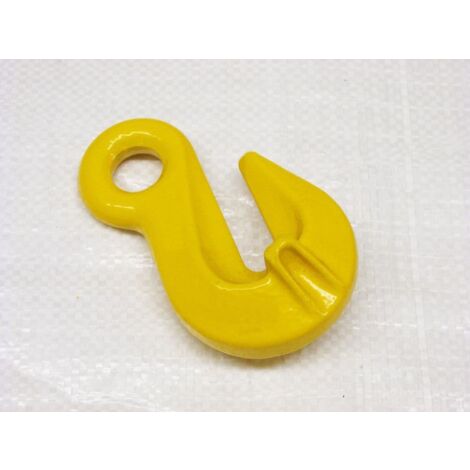

Eye Grab Hook Grade 80 13MM (G80 5.3 Ton Lifting Chain Sling Shortening Clutch)

Name: Eye Grab Hook Grade 80 13MM (G80 5.3 Ton Lifting Chain Sling Shortening Clutch)
Brand: SECUREFIX DIRECT
SKU: SFYASEGH13
Price: 15.25 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Eye Grab Hook Grade 80 is designed for use in the lifting gear industry, specifically for chain slings. This high-quality lifting accessory allows for the shortening of chains to meet specific lifting requirements by attaching the chain to the grab hook.

Technical specifications

Material: Grade 80 (G80)

Chain Size: 13MM

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Product Codes and Specifications:

SFYASEGH07: SWL 2 Tonne, A 17.5 MM, B 60 MM, C 92 MM, D 10 MM, E 11 MM, F 31.5 MM

SFYASEGH10: SWL 3.15 Tonne, A 19.5 MM, B 77 MM, C 120 MM, D 12.5 MM, E 13.5 MM, F 45 MM

SFYASEGH13: SWL 5.3 Tonne, A 25 MM, B 97 MM, C 160 MM, D 15 MM, E 16.5 MM, F 60 MM

SFYASEGH16: SWL 8 Tonne, A 29 MM, B 105 MM, C 165 MM, D 18 MM, E 20 MM, F 70 MM

SFYASEGH20: SWL 12.5 Tonne, A 37.5 MM, B 140 MM, C 215 MM, D 23 MM, E 24 MM, F 80 MM

SFYASEGH22: SWL 15 Tonne, A 42.5 MM, B 160 MM, C 255 MM, D 27 MM, E 27 MM, F 95 MM

SFYASEGH26: SWL 21.2 Tonne, A 44.5 MM, B 180 MM, C 300 MM, D 27.5 MM, E 35 MM, F 100 MM

SFYASEGH32: SWL 31.5 Tonne, A 55 MM, B 227 MM, C 365 MM, D 34 MM, E 43 MM, F 123 MM

Usage

Used in conjunction with chain slings for lifting applications.

Allows for the shortening of chains to suit specific lifting needs.

Other information

Test certificate will be supplied via email.

Free delivery available.

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Pcs per pack
1
Maximum load
5300 kg
Width
16 cm
Material
Two-material
Weight
100 g
ManoMano Reference
ME27134773
MMID
224723369498
Product code
SFYASEGH13
EAN
0600988486010
