General description

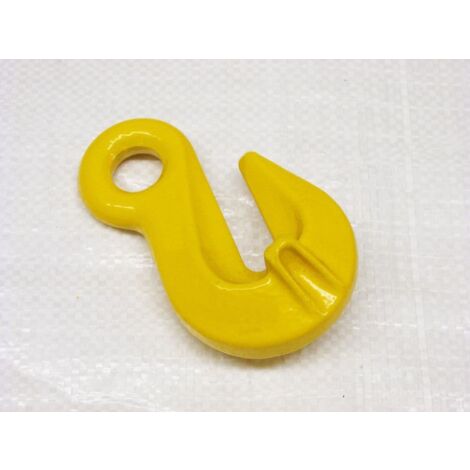

Eye Grab Hook Grade 80 7MM is a high-quality lifting accessory designed for use in the lifting gear industry. This eye type grab hook is compatible with 7MM chain sizes and is primarily used in conjunction with chain slings to facilitate lifting operations. By attaching a chain to the grab hook, users can effectively shorten the chain to meet specific lifting requirements.Technical specifications
- Material: Grade 80 (G80)
- Finish: Yellow (may vary)
- Factor of Safety: 4:1
- Conforms to: BS EN 1677
Product Code and Specifications
| Product Code | SWL (Tonne) | A (MM) | B (MM) | C (MM) | D (MM) | E (MM) | F (MM) |
|---|---|---|---|---|---|---|---|
| SFYASEGH07 | 2 | 17.5 | 60 | 92 | 10 | 11 | 31.5 |
| SFYASEGH10 | 3.15 | 19.5 | 77 | 120 | 12.5 | 13.5 | 45 |
| SFYASEGH13 | 5.3 | 25 | 100 | 155 | 15 | 15 | 56 |
| SFYASEGH16 | 8 | 29 | 105 | 165 | 18 | 20 | 70 |
| SFYASEGH20 | 12.5 | 37.5 | 140 | 215 | 23 | 24 | 80 |
| SFYASEGH22 | 15 | 42.5 | 160 | 255 | 27 | 27 | 95 |
| SFYASEGH26 | 21.2 | 44.5 | 180 | 300 | 27.5 | 35 | 100 |
| SFYASEGH32 | 31.5 | 55 | 227 | 365 | 34 | 43 | 123 |
Other information
- Test certificate will be supplied via email
- Free delivery available
