Eye Grab Hook Grade 80 10MM (G80 3.15 Ton Lifting Chain Sling Shortening Clutch)

Name: Eye Grab Hook Grade 80 10MM (G80 3.15 Ton Lifting Chain Sling Shortening Clutch)
Brand: SECUREFIX DIRECT
SKU: SFYASEGH10
Price: 10.25 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

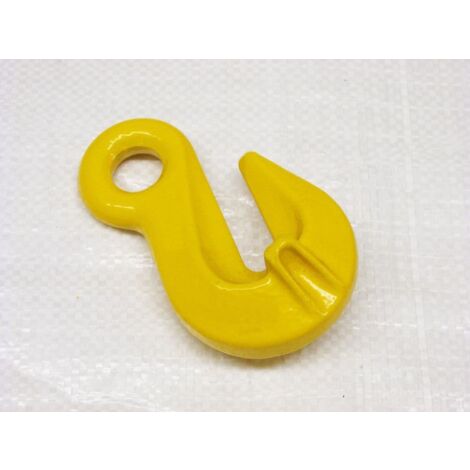

Eye Grab Hook Grade 80 is designed for use with 10MM chain sizes, providing a reliable solution for lifting applications. Made from high-quality Grade 80 material, these hooks are essential in the lifting gear industry, particularly for chain slings. They allow for easy shortening of chains to meet specific lifting requirements.

Technical specifications

Material: Grade 80 (G80)

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Available Product Codes and Specifications:

SFYASEGH07: SWL 2 Tonne, A 17.5 MM, B 60 MM, C 92 MM, D 10 MM, E 11 MM, F 31.5 MM

SFYASEGH10: SWL 3.15 Tonne, A 19.5 MM, B 77 MM, C 120 MM, D 12.5 MM, E 13.5 MM, F 45 MM

SFYASEGH13: SWL 5.3 Tonne, A 25 MM, B 100 MM, C 155 MM, D 15 MM, E 15 MM, F 56 MM

SFYASEGH16: SWL 8 Tonne, A 29 MM, B 105 MM, C 165 MM, D 18 MM, E 20 MM, F 70 MM

SFYASEGH20: SWL 12.5 Tonne, A 37.5 MM, B 140 MM, C 215 MM, D 23 MM, E 24 MM, F 80 MM

SFYASEGH22: SWL 15 Tonne, A 42.5 MM, B 160 MM, C 255 MM, D 27 MM, E 27 MM, F 95 MM

SFYASEGH26: SWL 21.2 Tonne, A 44.5 MM, B 180 MM, C 300 MM, D 27.5 MM, E 35 MM, F 100 MM

SFYASEGH32: SWL 31.5 Tonne, A 55 MM, B 227 MM, C 365 MM, D 34 MM, E 43 MM, F 123 MM

Usage

These grab hooks are primarily used in conjunction with chain slings. By attaching a chain to the grab hook, users can effectively shorten the chain to suit their specific lifting needs.

Other information

*Test Certificate will be supplied via email.*
*Please note we supply a huge variety of lifting gear.*

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Pcs per pack
1
Maximum load
3150 kg
Material
Two-material
Weight
100 g
