Grade 80 Omega Link 10MM Lifting Chain (3.15 Ton Coupling Link Connector 3.15T)

Name: Grade 80 Omega Link 10MM Lifting Chain (3.15 Ton Coupling Link Connector 3.15T)
Brand: SECUREFIX DIRECT
SKU: SFYASCL10
Price: 8.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

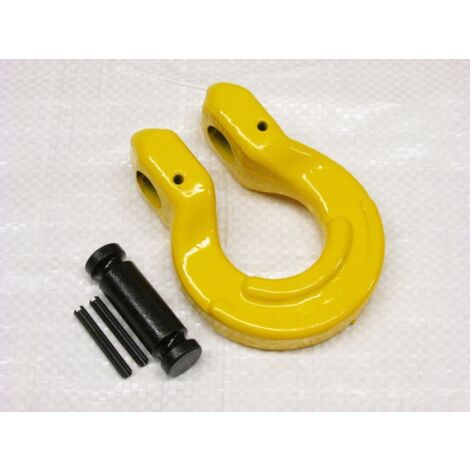

This Grade 80 Omega Link 10MM Lifting Chain is a high-quality coupling link designed for the lifting gear industry. It is primarily used as a connector between equipment in conjunction with flat master links. The chain has a safe working load (SWL) of 3.15 tons and is made from durable Grade 80 material, ensuring reliability and strength in lifting applications.

Technical specifications

Product Code: SFYASCL10

SWL: 3.15 Ton

Material: Grade 80

Diameter: 10MM

Factor of Safety: 4:1

Conforms to: BS EN 1677

Dimensions:

A: 16 MM

B: 64 MM

C: 12.5 MM

D: 31 MM

E: 62 MM

F: 87.5 MM

G: 13 MM

H: 46 MM

Other information

Test Certificate will be supplied via email

Colour may vary

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Material
Two-material
Warranty
1 year(s)
