Grade 80 Omega Link 16MM Lifting Chain (8 Ton Coupling Link Connector 8T)

Name: Grade 80 Omega Link 16MM Lifting Chain (8 Ton Coupling Link Connector 8T)
Brand: SECUREFIX DIRECT
SKU: SFYASCL16
Price: 15.99 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

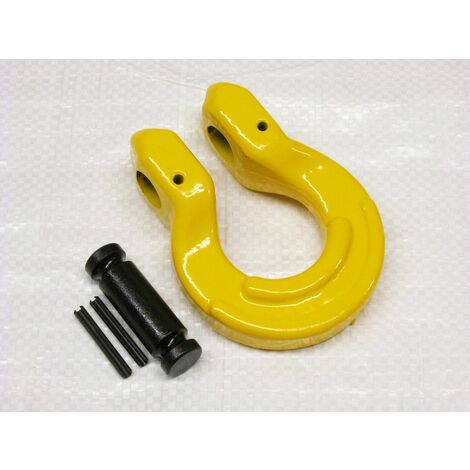

This Grade 80 Omega Link 16MM Lifting Chain is designed for heavy-duty lifting applications, with a safe working load (SWL) of 8 tons. It serves as a coupling link connector, primarily used in the lifting gear industry, and is compatible with flat master links to connect various lifting equipment.

Technical specifications

Material: Grade 80

Diameter: 16MM

Color: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Product Code: SFYASCL16

SWL: 8 Ton

Dimensions:

A: 25 MM

B: 92.5 MM

C: 19 MM

D: 48 MM

E: 98 MM

F: 125 MM

G: 19.5 MM

H: 64 MM

Other information

Test certificate will be supplied via email.

Free delivery available.

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Material
Two-material
Pcs per pack
1
Warranty
1 year(s)
