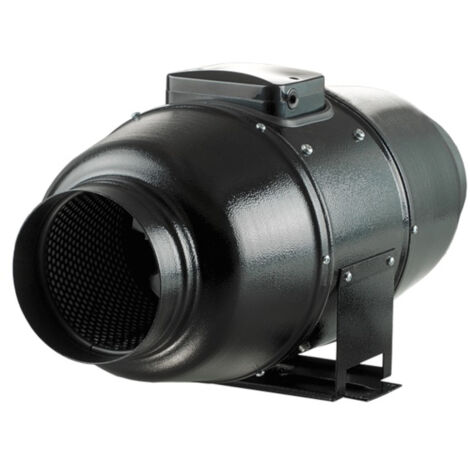

Inline fan TT Silent M 200 V up to 1020 m³/h

Dimensions and technical details

• 220-240 V ~ 50/60 Hz
• Housing colour: black
• Housing material: powder-coated steel
• 50mm mineral wool layer for sound and heat insulation
• Nominal size: 200 mm
• Wattage: 78 / 110 W
• Current consumption: 0.35 / 0.49 A
• Revolutions per minute: 2015 / 2445
• Airflow rate: 810 / 1020 m³/h
• Sound pressure Lp-3m: 31 / 36 dB(A)
• Height: 295 mm
• Width: 293 mm
• Width mounting bracket: 386 mm
• Length: 550 mm
• Diameter duct connection : 198 mm
• Max. temperature for continuous operation: 60°C
• IP code: IPX4
• Weight: 8 kg
• Integrated speed control: 2 speeds / off
• Ball-bearing motor
• Mounting options: any position
• Motor unit can be removed quickly and easily for cleaning and maintenance
• Application: ventilation systems requiring high pressure and low noise level
• Ideal for air extraction in damp rooms of residential and commercial properties
