Insulating Rubber Lined U-bolt and Backing pad 29 mm ID (suit 20 mm NB pipe) - Zinc Plated Mild Steel

Sold by Graphskill

You may also like

U-Bolt M12 x80mm Thread, 78mm Inside Diam, 131mm Inside Height BZP(Zinc Plated)

U-Bolt M12 x80mm Thread, 78mm Inside Diam, 131mm Inside Height BZP(Zinc Plated)

1
U-Bolt M6 x21mm Thread, 14mm Inside Diam, 35mm Inside Height T316 Stainless Steel

U-Bolt M6 x21mm Thread, 14mm Inside Diam, 35mm Inside Height T316 Stainless Steel

1
Insulating Rubber Lined U-bolt and Backing pad 36 mm ID (suit 25 mm NB pipe)-Galvanised

Insulating Rubber Lined U-bolt and Backing pad 36 mm ID (suit 25 mm NB pipe)-Galvanised

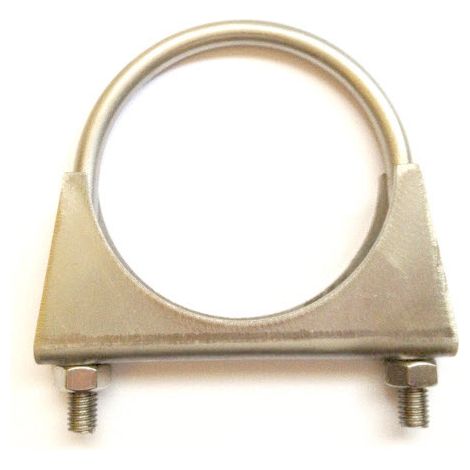

Universal Exhaust pipe clamp + U-bolt - 51 mm - T304 Stainless Steel

Universal Exhaust pipe clamp + U-bolt - 51 mm - T304 Stainless Steel

1
U-Bolt M10 x 69 mm Thread, 59 mm Inside Diam, 100 mm Inside Height Stainless Steel

U-Bolt M10 x 69 mm Thread, 59 mm Inside Diam, 100 mm Inside Height Stainless Steel

1
U-Bolt M8 x60 mm Thread, 38 mm Inside Diam, 84 mm Inside Height Galvanised

U-Bolt M8 x60 mm Thread, 38 mm Inside Diam, 84 mm Inside Height Galvanised

1
Slotted backing plate for M12 U-bolt (45 - 75 mm ID) T316 Stainless Steel

Slotted backing plate for M12 U-bolt (45 - 75 mm ID) T316 Stainless Steel

U-Bolt M8 x35 mm Thread, 45 mm Inside Diam, 110 mm Inside Height T304 Stainless Steel

U-Bolt M8 x35 mm Thread, 45 mm Inside Diam, 110 mm Inside Height T304 Stainless Steel

1
ForgeFix 10CB8150 Carriage Bolt & Nut ZP M8 x 150mm Bag 10 FORCB8150GFORGEFIX
38 options

ForgeFix 10CB8150 Carriage Bolt & Nut ZP M8 x 150mm Bag 10 FORCB8150G

Free shipping
Slotted backing plate for M12 U-bolt (45 - 75 mm ID) Galvanised Mild Steel

Slotted backing plate for M12 U-bolt (45 - 75 mm ID) Galvanised Mild Steel

1
Slotted backing plate for M10 U-bolt (41 - 58 mm ID) Galvanised Mild Steel

Slotted backing plate for M10 U-bolt (41 - 58 mm ID) Galvanised Mild Steel

1
U-Bolt M10 x 50 mm Thread, 50 mm Inside Diam, 90 mm Inside Height T316 Stainless Steel

U-Bolt M10 x 50 mm Thread, 50 mm Inside Diam, 90 mm Inside Height T316 Stainless Steel

1
EyeRod Eyepin Swing Bolt - M8 x 60 mm T304 (A2) Stainless Steel - DIN 444

EyeRod Eyepin Swing Bolt - M8 x 60 mm T304 (A2) Stainless Steel - DIN 444

1
U-Bolt M8 x 44 mm Thread, 60 mm Inside Diam, 83 mm Inside Height T316 Stainless Steel

U-Bolt M8 x 44 mm Thread, 60 mm Inside Diam, 83 mm Inside Height T316 Stainless Steel

1
Light Duty Anti-Vibration Rubber Lined U-bolt 89 mm ID (suit 80 mm NB pipe)- Galv

Light Duty Anti-Vibration Rubber Lined U-bolt 89 mm ID (suit 80 mm NB pipe)- Galv

1
U-Bolt M8 x30mm Thread, 42mm Inside Diam, 56mm Inside Height T304 Stainless Steel

U-Bolt M8 x30mm Thread, 42mm Inside Diam, 56mm Inside Height T304 Stainless Steel

Insulating Rubber Lined U-bolt and Backing pad 50 mm ID (suit 32 mm NB pipe)-T316 SS

Insulating Rubber Lined U-bolt and Backing pad 50 mm ID (suit 32 mm NB pipe)-T316 SS

Light Duty Anti-Vibration Rubber Lined U-bolt 21 mm ID (suit 15 mm NB pipe) - Galvanised

Light Duty Anti-Vibration Rubber Lined U-bolt 21 mm ID (suit 15 mm NB pipe) - Galvanised

U-Bolt M8 x 70 mm Thread, 79 mm ID, 120 mm IH Galv A320 L7 High tensile steel

U-Bolt M8 x 70 mm Thread, 79 mm ID, 120 mm IH Galv A320 L7 High tensile steel

1

Compare with similar items

Product information

Description

General description

Insulating Rubber Lined U-bolt and Backing pad designed for 29 mm ID, suitable for 20 mm NB pipe. Constructed from zinc plated mild steel, this product is ideal for various applications, including general workshop use and with compressors. The neoprene rubber lining provides excellent resistance to weathering, sea water, mineral oils, and grease.

Technical specifications

  • U-Bolt Material: Zinc Plated Mild Steel
  • Backing Pad Material: Neoprene Rubber
  • Elastomer: Neoprene
  • Colour: Black
  • Quality: Commercial
  • Grade: C20
  • Hardness: 65 shore A +/-5
  • Specific Gravity: 1.4 G/Cm3
  • Tensile Strength: 5 MPA (minimum)
  • Elongation: 300%
  • Tear Strength: 20 Kg/CM
  • Compression Set: 35%
  • Operating Temperature: -20°C to +110°C
  • Pipe O/D: 26.9 mm
  • Dimensions: A = 29 mm, B = 43 mm, C = 70 mm, D = 6 mm, E = 60 mm, F = 65 mm, G = 13.5 mm
  • Backing Pad Dimensions: D*A = 25*10 mm
  • Tolerance on dimensions: +/- 1 mm

    • Compatibility and accessories

  • Suitable for 20 mm NB pipe
  • Compatible with general workshop applications and compressors

    • Usage

    Used to prevent galvanic corrosion due to the contact of dissimilar metals in the presence of an electrolyte. It also helps in preventing wear and/or crushing of composite, thin wall, or non-ferrous pipework.

    Other information

  • Backing pad provides good flame retardant properties, excellent acid resistance, and good ozone and oxidation resilience.
  • Not suitable for resistance to aliphatic and aromatic hydrocarbons and ketones.
  • Temperature range for sleeve: -20°C to +90°C

    • Features

    • Brand
      GRAPHSKILL
    • NF certification
      NF110
    • Certification body
      ISO
    • Material
      Zinc
    • Pcs per pack
      1
