Insulating Rubber Lined U-bolt and Backing pad 36 mm ID (suit 25 mm NB pipe)-Galvanised

Sold by Graphskill

You may also like

U-Bolt M12 x80mm Thread, 78mm Inside Diam, 131mm Inside Height BZP(Zinc Plated)

U-Bolt M12 x80mm Thread, 78mm Inside Diam, 131mm Inside Height BZP(Zinc Plated)

1
U-Bolt M6 x21mm Thread, 14mm Inside Diam, 35mm Inside Height T316 Stainless Steel

U-Bolt M6 x21mm Thread, 14mm Inside Diam, 35mm Inside Height T316 Stainless Steel

1
Universal Exhaust pipe clamp + U-bolt - 51 mm - T304 Stainless Steel

Universal Exhaust pipe clamp + U-bolt - 51 mm - T304 Stainless Steel

1
U-Bolt M8 x60 mm Thread, 38 mm Inside Diam, 84 mm Inside Height Galvanised

U-Bolt M8 x60 mm Thread, 38 mm Inside Diam, 84 mm Inside Height Galvanised

1
Slotted backing plate for M12 U-bolt (45 - 75 mm ID) T316 Stainless Steel

Slotted backing plate for M12 U-bolt (45 - 75 mm ID) T316 Stainless Steel

U-Bolt M8 x35 mm Thread, 45 mm Inside Diam, 110 mm Inside Height T304 Stainless Steel

U-Bolt M8 x35 mm Thread, 45 mm Inside Diam, 110 mm Inside Height T304 Stainless Steel

1
ForgeFix 10CB8150 Carriage Bolt & Nut ZP M8 x 150mm Bag 10 FORCB8150GFORGEFIX
38 options

ForgeFix 10CB8150 Carriage Bolt & Nut ZP M8 x 150mm Bag 10 FORCB8150G

Free shipping
U-Bolt M10 x 50 mm Thread, 50 mm Inside Diam, 90 mm Inside Height T316 Stainless Steel

U-Bolt M10 x 50 mm Thread, 50 mm Inside Diam, 90 mm Inside Height T316 Stainless Steel

1
EyeRod Eyepin Swing Bolt - M8 x 60 mm T304 (A2) Stainless Steel - DIN 444

EyeRod Eyepin Swing Bolt - M8 x 60 mm T304 (A2) Stainless Steel - DIN 444

1
U-Bolt M8 x 44 mm Thread, 60 mm Inside Diam, 83 mm Inside Height T316 Stainless Steel

U-Bolt M8 x 44 mm Thread, 60 mm Inside Diam, 83 mm Inside Height T316 Stainless Steel

1
Light Duty Anti-Vibration Rubber Lined U-bolt 89 mm ID (suit 80 mm NB pipe)- Galv

Light Duty Anti-Vibration Rubber Lined U-bolt 89 mm ID (suit 80 mm NB pipe)- Galv

1
U-Bolt M8 x30mm Thread, 42mm Inside Diam, 56mm Inside Height T304 Stainless Steel

U-Bolt M8 x30mm Thread, 42mm Inside Diam, 56mm Inside Height T304 Stainless Steel

Insulating Rubber Lined U-bolt and Backing pad 230 mm ID (suit 200 mm NB pipe)-T316 SS

Insulating Rubber Lined U-bolt and Backing pad 230 mm ID (suit 200 mm NB pipe)-T316 SS

Insulating Rubber Lined U-bolt and Backing pad 50 mm ID (suit 32 mm NB pipe)-T316 SS

Insulating Rubber Lined U-bolt and Backing pad 50 mm ID (suit 32 mm NB pipe)-T316 SS

Light Duty Anti-Vibration Rubber Lined U-bolt 168 mm ID (suit 150 mm NB pipe) - BZP

Light Duty Anti-Vibration Rubber Lined U-bolt 168 mm ID (suit 150 mm NB pipe) - BZP

Light Duty Anti-Vibration Rubber Lined U-bolt 219 mm ID (suit 200 mm NB pipe) - BZP

Light Duty Anti-Vibration Rubber Lined U-bolt 219 mm ID (suit 200 mm NB pipe) - BZP

Light Duty Anti-Vibration Rubber Lined U-bolt 21 mm ID (suit 15 mm NB pipe) - Galvanised

Light Duty Anti-Vibration Rubber Lined U-bolt 21 mm ID (suit 15 mm NB pipe) - Galvanised

U-Bolt M8 x 70 mm Thread, 79 mm ID, 120 mm IH Galv A320 L7 High tensile steel

U-Bolt M8 x 70 mm Thread, 79 mm ID, 120 mm IH Galv A320 L7 High tensile steel

1
Insulating Rubber Lined U-bolt and Backing pad 29 mm ID (suit 20 mm NB pipe) - Zinc Plated Mild Steel

Insulating Rubber Lined U-bolt and Backing pad 29 mm ID (suit 20 mm NB pipe) - Zinc Plated Mild Steel

1

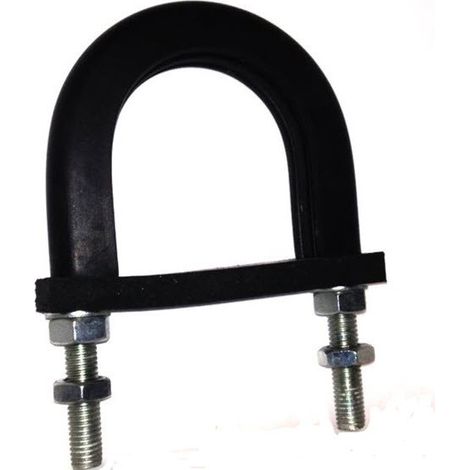

Light Duty Anti-Vibration Rubber Lined U-bolt 76 mm ID (suit 65 mm NB pipe)-T316 SS

Light Duty Anti-Vibration Rubber Lined U-bolt 76 mm ID (suit 65 mm NB pipe)-T316 SS

Compare with similar items

Often purchased together

Product information

Description

General description

Insulating Rubber Lined U-bolt and Backing pad designed for 36 mm ID, suitable for 25 mm NB pipe. This product features a neoprene rubber pad that offers excellent resistance to weathering, sea water, mineral oils, and grease applications. It is ideal for preventing galvanic corrosion due to contact between dissimilar metals in the presence of an electrolyte, as well as for reducing wear and crushing of composite, thin wall, or non-ferrous pipework.

Technical specifications

  • Pad Material: Neoprene Rubber
  • Elastomer: Neoprene
  • Colour: Black
  • Quality: Commercial
  • Grade: C20
  • Hardness: 65 shore A +/-5
  • Specific Gravity: 1.4 G/Cm3
  • Tensile Strength: 5 MPA (minimum)
  • Elongation: 300%
  • Tear Strength: 20 Kg/CM
  • Compression Set: 35%
  • Operating Temperature: -20°C to +110°C
  • U-Bolt: Galvanised
  • Pipe O/D: 33.7 mm
  • Dimensions: A = 36 mm, B = 50 mm, C = 75 mm, D = 6 mm, E = 60 mm, F = 65 mm, G = 17 mm, D*A (backing pad) = 25*10 mm
  • Tolerance on dimensions: +/- 1 mm

    • Compatibility and accessories

  • Compatible with 25 mm NB pipe
  • Includes 2 nuts on each leg (if using your own nuts, ensure they are galvanised and tapped oversize)

    • Usage

    This product is suitable for general workshop use and with compressors. It is designed to provide insulation and support for pipes, preventing damage and corrosion.

    Other information

  • Pad is resistant to ozone and oxidation
  • Temperature range for sleeve: -20°C to +90°C
  • Cover material: Black, weather and ozone resistant SBR/EDPM
  • Reinforcement: Synthetic textile
  • Tube material: Black NBR/SBR synthetic rubber
  • Galvanised finish provides enhanced protection for outdoor applications

    • Features

    • Brand
      GRAPHSKILL
    • NF certification
      NF110
    • Certification body
      ISO
    • Material
      Rubber
    • Pipe clamp use
      Hose clamp
