KGS 305M Cross Cut Mitre Saw 1600W 110V

Name: KGS 305M Cross Cut Mitre Saw 1600W 110V
Brand: METABO
SKU: KGS305M/1
Price: 462.17 GBP
Availability: InStock
Rating: 3.67 (3 reviews)

Sold by DIY Doctor

Often purchased together

Product information

Description

General description

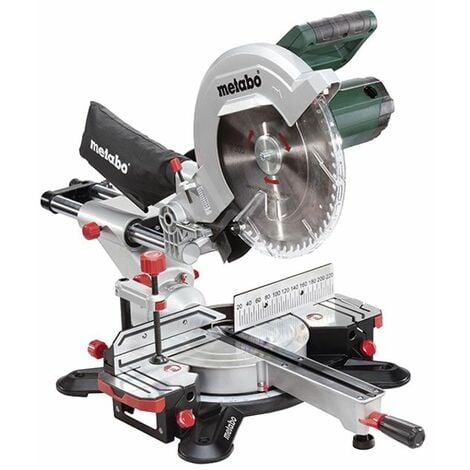

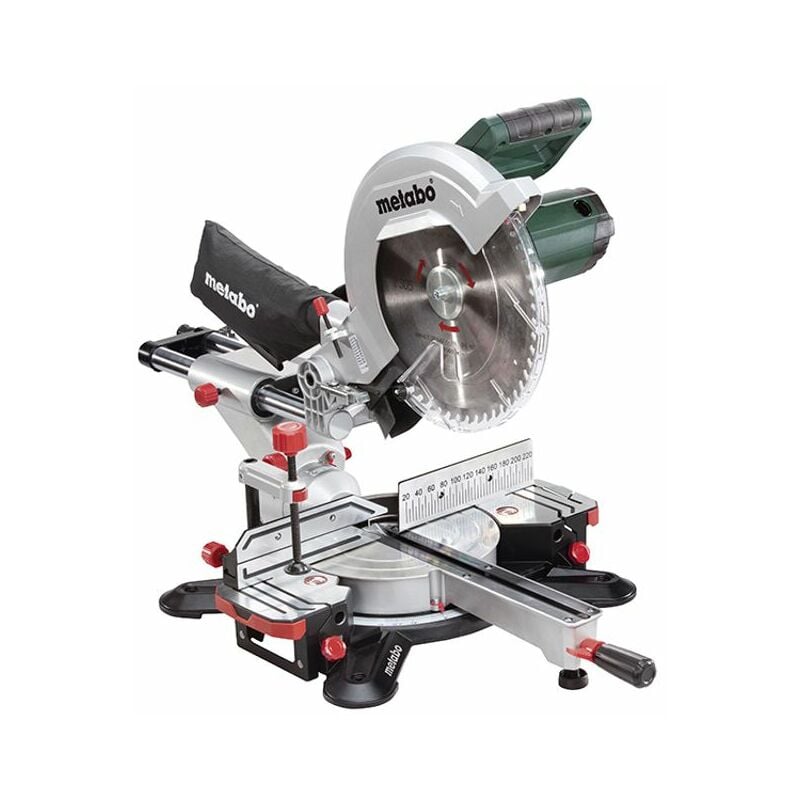

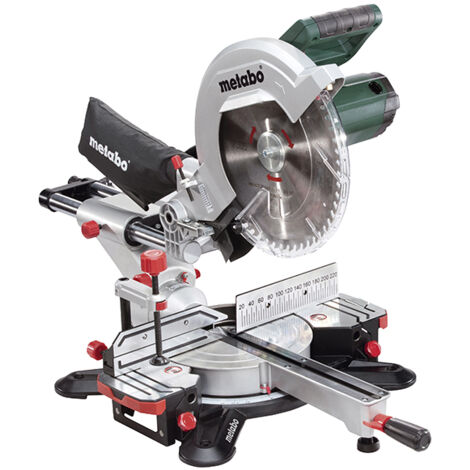

The Metabo KGS 305M Cross Cut Mitre Saw is a powerful 1600W tool designed for precision cutting. Its compact and lightweight design, along with a one-handed transport feature, makes it easy to move and operate. The saw is equipped with a sliding function for handling wide workpieces and offers an enormous cutting performance thanks to its robust universal motor and large saw blade.

Technical specifications

Input Power: 1600W

No Load Speed: 3700/min

Blade Size: 305 x 30mm Bore

Turntable Setting: Left/Right 47/47°

Max Cutting Width (90°/45°): 305/205mm

Max Cutting Depth (90°/45°): 105/67mm

Max Cutting Size (90°/90°): 305x105mm

Double Mitre Cutting Size (45°/45°): 205x67mm

Blade Tilt: Left/Right 47/2°

Weight: 19.6kg

Installation

Easy saw blade change via spindle lock without dismantling the pendulum protective cover.

Usage

Features high sliding rear fence profiles and a material clamp for secure fixing of the workpiece from the top or front.

Fast and precise angle settings using stop points with a laser for exact cutting line display.

Bright LED work light illuminates the cutting line for better visibility.

Other information

Robust die-cast aluminium design for durability.

Effective dust extraction via an integrated dust scoop.

Ergonomically-designed handles and saw head lock for easy transport.

Starting current limitation prevents the actuation of the lock on start-up.

Features

Brand
METABO
Disc / blade diameter
305 mm
Power
1600 W
NF certification
NF110
Warranty
1 year(s)
Power source
Corded
With integrated lighting
Yes
Bore diameter
30 mm
Function of the saw
Radial arm
Height
45 cm
Width
88.5 cm
Cutting width
305 mm
Laser
Yes
Length
30.5 cm
Material to cut
Wood
Suitable for
Wood
Material
Metal
Weight
19.6 kg
power supply
Electric
Voltage
110 V
Type of mitre saw
Radial arm
ManoMano Reference
ME1126013
MMID
266482219429
Product code
KGS305M/1
EAN
4007430280725

Customer reviews

3,7

/ 3 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 22/06/2020, United Kingdom

A great piece of kit, capable of doing everything I need at a great price.

MManoMano Customer

Published on 28/04/2020, United Kingdom

Cuts so smoothly and has lots of nice little features like the depth stop

Advice from

Mitre saw buying guide

Got some skirting boards, door frames or trim to cut? A mitre saw is the perfect tool for the job. Whether you go for a hand saw or powered model, these saws can be used for a range of angled cuts. Looking for more? A sliding mitre saw features a sliding mechanism for increased cutting width. Read on for our top tips!

Read our guide

Visit the METABO store

METABO, a brand of the German company Metabo Werke Gmbh, is an epitome of German entrepreneurship. It was founded by Albrecht Schnizler in 1923 in Nürtingen (Baden-Württemberg), in the backroom of his parents' bakery. A passionate inventor, he designed the first hand-held drill capable of piercing metal, which was widely used at the time. Named the n°18, it sold over 50,000 units, mainly in Great Britain. In 1929, Metabo Werke was founded with two other partners; METABO derives from the German Metallbohrdreher, hand drill. Innovations in power tools followed one another: in 1950 came the first grinder, the following year the sander, then a year later the quick-release chuck, and in 1957 a world exclusive: the percussion drill... in all, more than 500 patents and designs were registered. METABO continues to manufacture its saws, hedge trimmers and screwdrivers in Germany: in 2005, more than half the company's employees were based in Germany. By 1999, the Group had become Europe's number 1 in woodworking tools, and the world's second largest.
