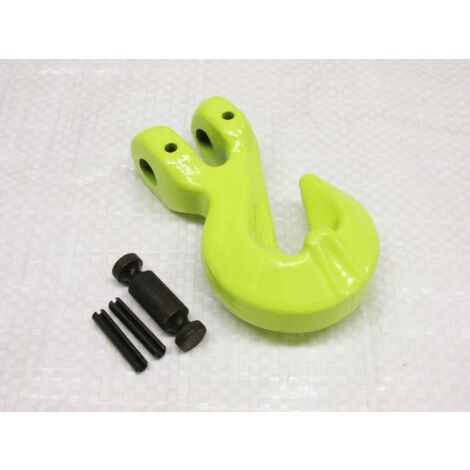

Lifting Clevis Grab Hook 13MM Grade 100 (6.7 Ton Shortener Clutch Chain Hook 6.7T)

Name: Lifting Clevis Grab Hook 13MM Grade 100 (6.7 Ton Shortener Clutch Chain Hook 6.7T)
Brand: SECUREFIX DIRECT
SKU: SFG10CGH13
Price: 24.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

The Lifting Clevis Grab Hook is designed for use with 13MM chain sizes and is made from high-quality Grade 100 material. This hook is primarily utilized in the lifting gear industry for chain slings, allowing for effective shortening of chains to meet specific lifting requirements. The hook features a light green finish, although the color may vary. With a factory safety factor of 4:1, it ensures reliable performance in lifting applications.

Technical specifications

Material: Grade 100

SWL (Safe Working Load): 6.7 Ton

Dimensions:

A (MM): 91

B (MM): 44

C (MM): 16

D (MM): 14.5

E (MM): 56

F (MM): 162

G (MM): 16

H (MM): 14.5

Conforms to: ASTM A952

Usage

The Clevis Grab Hook is used in conjunction with chain slings. By attaching the chain to the grab hook, it allows for the chain to be shortened as needed for various lifting tasks. Grade 100 products are lighter yet stronger than their Grade 80 counterparts, making them an excellent choice for demanding lifting applications.

Other information

Test certificate will be supplied via email.

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Material
Two-material
Colour
Light green
Maximum load
6700 kg
