Lifting Clevis Grab Hook 16MM Grade 80 (8 Ton Shortening Clutch Chain Hook 8T)

Name: Lifting Clevis Grab Hook 16MM Grade 80 (8 Ton Shortening Clutch Chain Hook 8T)
Brand: SECUREFIX DIRECT
SKU: SFYASCGH16
Price: 26.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

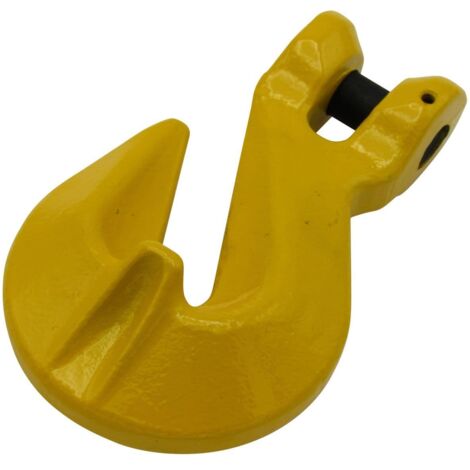

Clevis Grab Hook designed for 16MM chain size, made from high-quality Grade 80 (G80) material. This hook is primarily used in the lifting gear industry for chain slings, allowing for effective shortening of chains to meet specific lifting requirements.

Technical specifications

Material: Grade 80 (G80)

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

SWL (Safe Working Load): 8 Ton

Product Code: SFYASCGH16

Dimensions:

A: 107 MM

B: 72 MM

C: 19 MM

D: 18.5 MM

E: 72.5 MM

F: 185 MM

G: 20 MM

H: 20.5 MM

Usage

These hooks are used in conjunction with chain slings. By attaching the chain to the grab hook, it allows for the chain to be shortened to suit your lifting needs.

Other information

*Test Certificate will be supplied via email.*

Features

Brand
SECUREFIX DIRECT
Width
10.7 cm
Height
7.2 cm
Colour
Yellow
Maximum load
8000 kg
