Lifting Clevis Grab Hook 7MM Grade 80 (2 Ton Shortening Clutch Chain Hook 2T)

Name: Lifting Clevis Grab Hook 7MM Grade 80 (2 Ton Shortening Clutch Chain Hook 2T)
Brand: SECUREFIX DIRECT
SKU: SFYASCGH07
Price: 9.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

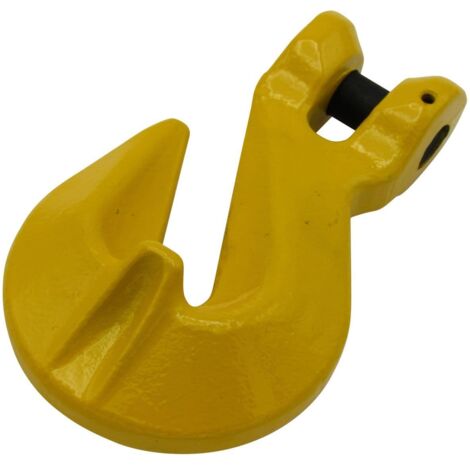

Clevis Grab Hook designed for 7MM chain size, made from high-quality Grade 80 (G80) material. This hook is primarily used in the lifting gear industry for chain slings, allowing for effective shortening of chains to meet specific lifting requirements. The hook features a yellow finish, which may vary.

Technical specifications

Material: Grade 80 (G80)

Factor of Safety: 4:1

Conforms to: BS EN 1677

SWL (Tonne): 2

Dimensions:

A (MM): 52

B (MM): 22.5

C (MM): 10

D (MM): 8.5

E (MM): 33.5

F (MM): 90

G (MM): 9

H (MM): 10

Usage

These hooks are used in conjunction with chain slings. By attaching the chain to the grab hook, it allows for the chain to be shortened as needed for various lifting tasks.

Other information

*Test Certificate will be supplied via email*

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Material
Two-material
Colour
Multicolour
Maximum load
2000 kg
