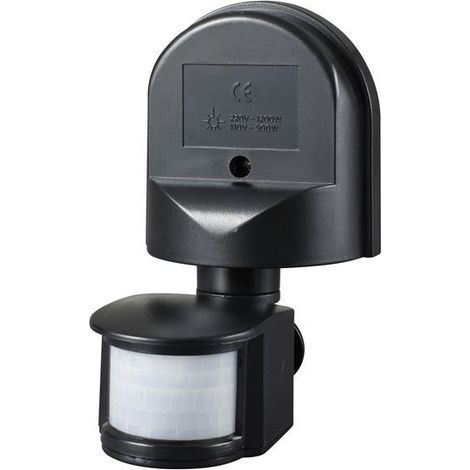

Meridian Lighting Wall-Mounted PIR Motion Detector Black Model MDNPIR180B

Description

• The Meridian Wall Mounted PIR Motion Detector automatically turns on wired lights when movement is detected within its range. It features a 180-degree detection angle and a maximum detection distance of 12 meters. The device includes an adjustable timer from 10 seconds up to 7 minutes and an adjustable ambient light level, allowing customization for different lighting conditions. Suitable for both indoor and outdoor use, it offers weather protection with an IP44 rating. The detector comes with a corner wall mount for easy installation in corners or flat walls.

Technical Specifications

• Power Source: 220-240V, 50/60Hz
• Wattage: 0.5W
• Detection Distance: 5-12 meters
• Detection Range: 180 degrees
• Time Delay: 10 seconds to 7 minutes
• Ambient Light: 3-2000 LUX (adjustable)
• Installation Height: 1.8 to 2.5 meters
• Ingress Protection: IP44
• Dimensions: 78 x 28 x 120 mm

Compatibility and Accessories

• Compatible with wired lighting systems
• Includes a corner wall mount for flexible installation options

Installation

• Install at a height between 1.8 and 2.5 meters for optimal detection
• Mount on walls or corners using the included bracket
• Ensure the detector is positioned to cover the desired detection area

Usage

• Automatically activates connected lights upon detecting movement
• Adjust the timer and ambient light level to suit your needs
• Suitable for outdoor and indoor environments requiring motion-activated lighting

Other Information

• Weatherproof with an IP44 rating for outdoor use
