Product information

Description

General description

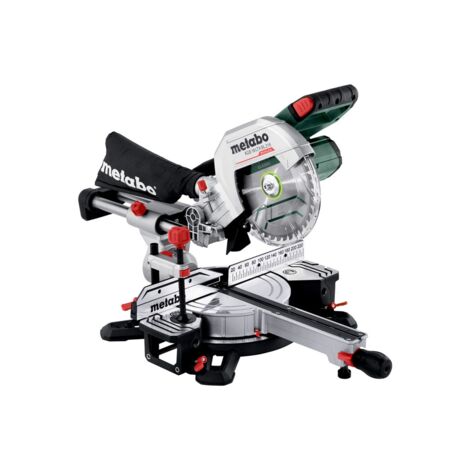

The Metabo KGS 18 LTX BL 216 Mitre Saw features a powerful brushless motor, delivering performance comparable to mains-powered tools. It includes a soft start and overload protection for extended motor life. The saw's sliding function allows for a large cutting capacity, making it suitable for wide workpieces. The turntable is equipped with stop points for common angles, enabling fast and precise adjustments. It also offers a saw blade inclination of up to 47°, a quick-action clamp for secure workpiece fixing, and a depth guide for creating grooves. The Precision Cut Line (PCL) provides a clear shadow cutting line, enhanced by an integrated LED for visibility.

Technical specifications

  • No Load Speed: 5000 rpm
  • Max Cutting Speed: 57 m/s
  • Blade Size: 216 x 30 mm
  • Max Cutting Width 90°/45°: 305/215 mm
  • Max Cutting Depth 90°/45°: 70/40 mm
  • Cutting Capacity 90°: 305 x 70 mm
  • Cutting Capacity 45°: 215 x 40 mm
  • Turntable Setting Left/Right: 50°/60°
  • Blade Tilt Left/Right: 47°/2°
  • Support Surface: 345 x 730 mm
  • Weight: 12.8 kg (without battery pack)

Compatibility and accessories

This product is part of the CAS system and can be combined with all 18V battery packs and chargers from CAS brands. Supplied accessories include:
  • 1 x Cordless Cut Wood - Classic Saw Blade 216 x 30 mm Z56
  • 2 x Table Length Extensions
  • 1 x Length Guide
  • 1 x Material Clamp
  • 1 x Tool for Saw Blade Change
  • 1 x Chip Collection Bag

Installation

As a bare unit, the Metabo KGS 18 LTX BL 216 does not come with a battery or charger. Ensure to use compatible CAS battery packs for operation.

Usage

The saw is designed for precise cutting and mitre applications, suitable for both professional and DIY projects. The ergonomic handle allows for easy carrying and operation, whether using one or two hands.

Features

  • Brand
    METABO
  • Disc / blade diameter
    216 mm
  • Power
    1500 W
  • Origin
    Made in China
  • Power source
    Cordless
  • Tilt angle
    47 °
  • With integrated lighting
    Yes
  • Bore diameter
    30 mm
  • Function of the saw
    LED
  • Cutting width
    305 mm
  • Laser
    Yes
  • Material to cut
    Wood
  • Suitable for
    Wood
  • Material
    Aluminium
  • Weight
    12.8 kg
  • Cutting depth
    70 mm
  • Noise level
    101 dB
  • Power supply
    Electric
  • Voltage
    18 V
  • Type of mitre saw
    Radial arm
  • ManoMano Reference
    ME77859564
  • MMID
    475373629924
  • Product code
    4061792230415
  • EAN
    4061792230415

Customer reviews

DDamien
Published on 26/07/2024, France

with a 4.0ah battery, cuts like butter. I can't imagine with an 8.0ah! The parallel guide must be adjusted because the first cuts are not square. you just need to tighten 4 screws and have a good square. I recommend !

1 person found this helpful
METABOVisit the METABO store
METABO, a brand of the German company Metabo Werke Gmbh, is an epitome of German entrepreneurship. It was founded by Albrecht Schnizler in 1923 in Nürtingen (Baden-Württemberg), in the backroom of his parents' bakery. A passionate inventor, he designed the first hand-held drill capable of piercing metal, which was widely used at the time. Named the n°18, it sold over 50,000 units, mainly in Great Britain. In 1929, Metabo Werke was founded with two other partners; METABO derives from the German Metallbohrdreher, hand drill. Innovations in power tools followed one another: in 1950 came the first grinder, the following year the sander, then a year later the quick-release chuck, and in 1957 a world exclusive: the percussion drill... in all, more than 500 patents and designs were registered. METABO continues to manufacture its saws, hedge trimmers and screwdrivers in Germany: in 2005, more than half the company's employees were based in Germany. By 1999, the Group had become Europe's number 1 in woodworking tools, and the world's second largest.
