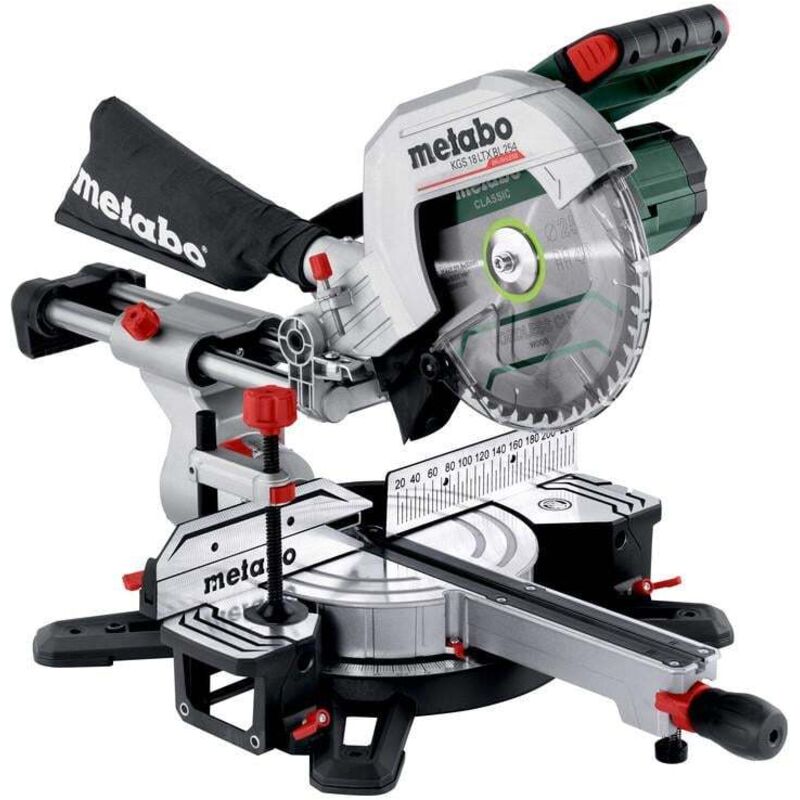

Metabo KGS 18 LTX BL 254 Brushless 254mm Crosscut Mitre Saw Body Only

Features


Compact cordless crosscut and mitre saw of the mobile M-class - light, precise, user-friendly
Powerful Brushless motor for powerful sawing like with a mains-powered tool
Up to 205 cuts in soft wood 80 x 80 mm per battery pack charge (LiHD 10 Ah)
Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
Large cutting capacity thanks to sliding function for wide work pieces
Turntable with fast, precise setting of common angles using stop points
Saw blade inclination from -2 to 47°, therefore also suited for undercuts
Robust die-cast aluminium design for the highest demands
Effective dust extraction via integrated dust scoop
Soft start and overload protection for long service life of motor and drive
Extendable table width extensions, also removable to put underneath extremely long work pieces
Quick-action clamp for secure fixing of the work piece from the top or front
Depth guide for easy creation of grooves
All scales and operating elements are visible from the working position and can be operated intuitively
Ergonomic handle areas for carrying with one or two hands
Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com


Specification

Type of battery pack Li-Power


Battery voltage 18 V


Support surface 345 x 760 mm


Maximum cutting width 90°/45° 305 / 215 mm


Maximum cutting depth at 90°/45° 92 / 47 mm


Cutting capacity 90°/90° 305 x 92 mm


Cutting capacity 45°/45° 215 x 47 mm


Turntable setting left/right 50 / 50 °


Saw blade tilt left/right 47 / 2 °


Saw blade 254 x 30 mm


No-load speed 4000 rpm


Max. cutting speed 53 m/s


Weight without battery pack 14.8 kg


Weight with battery pack 15.5 kg




Sound pressure level 91 dB(A)


Sound power level (LwA) 100 dB(A)


Uncertainty of measurement K 3 dB(A)



Standard Equipment

1x KGS 18 LTX BL 254 Mitre Saw
1x Cut Wood - Classic Saw Blade 254 x 30mm Z48
1x Chip Collection Bags
2x Table Length Extensions
1x Length Guide
1x Material Clamp
1x Tool For Saw Blade Change
