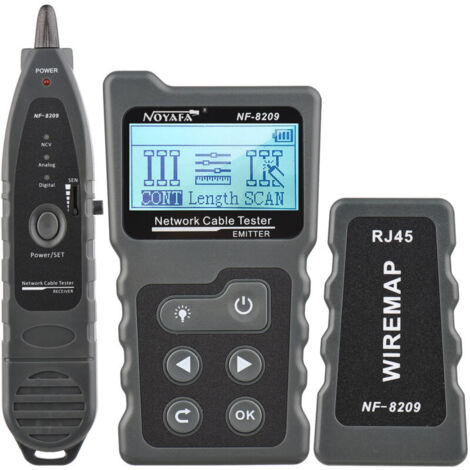

NF-8209 cable detector, multifunction, battery-free
Of which environmental contribution £0.01 including VAT.
Sold by LinzGain Sarl
You may also like
Compare with similar items
Product information
Description
With a choice of three modes—digital, analog, and PoE—the tester tracks cables with ease, meaning it is equipped with the most powerful cable tracing technology for any work environment. It also includes cable length measurement, cable fault testing, PoE testing, hub flicker, and NCV functions, making it an essential tool for cabling engineers.
Features:
- Transmitter Test Functions: Includes cable continuity testing, cable length measurement, cable scanning, and PoE testing.
- Three switchable scanning modes: With digital, analog, and PoE modes for optional cable tracing.
- PSE Type Distinction: Identifies the PSE type, whether it is standard A or AT.
- PoE Test Range: Information on testing standard/non-standard DC5~60V PoE devices.
- Non-Contact Voltage Detection: The receiver can be used to detect the AC voltage of household cables.
- Lighting Function: Both the transmitter and receiver are equipped with lights to illuminate the work area.
- OTHER SETTINGS: Backlight Duration (15 sec/30 sec/60 sec/on/off), Auto Power Off Duration (15 min/30 min/1 hr/off), Contrast Adjustment, and Version Check.
Specifications:
- Material: ABS
- Package Weight: 500g/17.64oz
- Package Size: 23*17*5cm/9.06*6.69*1.97inch
- Transmitter Parameter Functions:
- LCD Display: 128*64 dots with backlight
- Power Supply: 3 x 1.5VA AA batteries (not included)
- Low Battery Alert: 2.7V
- Auto-Off Time: 15min/30min/60Minutes/Off
- Saving Voltage: DC48V, 5mA
- Max. Operating Current: <150mA
- Dimensions: 130*70*28mm/5.12*2.76*1.10 inches
- Wiring Diagram Test:
- Cable Type: CAT5e, CAT6, CAT6a (STPUTP)
- Tested Directly with Switch: Yes
- Max Range: 600m
Length Test:
- Cable Type: CAT5e, CAT6, CAT6a (STPUTP)
- Test Range: 2.5~200m
- Accuracy: ±1.6m
- Location of Break: Yes
- Scan Test:
- Cable Type: CAT5e, CAT6, CAT6a (STPUTP)
- Maximum design voltage: 9±1Vp. Signal voltage: 9±1Vp-p
- Frequency: 130KHz
- Analog/Digital mode: Yes
- Maximum range: 600m
Power supply test:
- Test range: DC5~60V standard/non-standard PoE switch
- Voltage display: Yes
- PSE type: standard: IEEE802.3af/at; non-standard
- Receiver settings:
- Adjustable sensitivity: Yes
- AC voltage detection: Yes
- Lamps: Yes
- Battery type: 1 x 9V battery (not included)
- Low battery alert: 6±0.5V
- Max. Operating Current: <100mA
- Dimensions: 210*43*27mm/8.27*1.69*1.06 inches
- Remote Control Specifications:
- Wiring Port: RJ45
- Saving Voltage: DC48V, 5mA
- Dimensions: 65*37*23mm/2.56*1.46*0.91 inches
Package Contents:
- 1*Transmitter
- 1*Receiver
- 1*Remote Control
- 1*Earphone
- 1*Alligator Clip Test Wires 2*Alligator Clip Test Wires
- 2*Cables
- 1*Carrying Case
- 1*Manual (English)
Features
- BrandSNQ
- Length23 cm
- Width1 cm
- Voltage1 V
- MaterialPolystyrene (PS)
