NuaSol Balcony Power Plant Bracket Railing Fastening 1 Solar Module Photovoltaic

NuaFix - Solar panel holder and microinverter for square railings - Choose between 0° or 25-45° tilt angle

[NuaSol] We offer solutions for generating your own green electricity. From balcony power plant, solar modules, micro inverter to roof hooks, Z-brackets and many other mounts for your PV system, you will find.

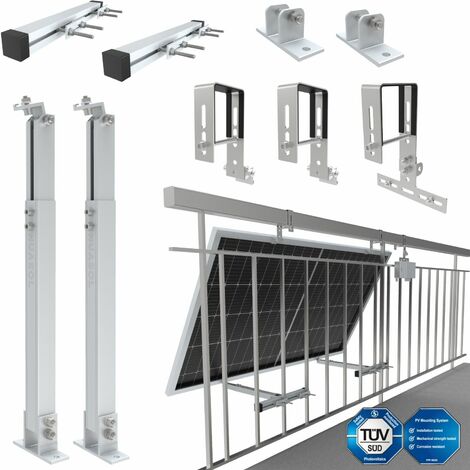

[Balcony mount] With the NuaFix, balcony brackets you are able to fix either 1 or 2 solar modules as well as your inverter to your balcony railing.

[Selectable tilt angle] Choose between the 0° bracket or the 25-45° bracket to achieve the ideal tilt angle, maximum efficiency of your solar panels on your balcony.

[Compatibility] Universally usable for any type of solar module. Suitable for angular balcony railings with a maximum diameter of 80 mm.

[Robust & Stable] Made of stainless steel, the hooks are weather resistant and highly durable. The strut and bracket for regulating the angle of inclination is made of high-quality AL6005-T5 aluminium. The screw set is made of stainless steel and is therefore rustproof.

NuaFix - Corner Terrain Mount

NuaFix offers you different mounting materials for attaching your mini PV system or balcony power plant. From hanger bolts to roof hooks to Z-brackets, you will find the right mounting material for every type of installation.

Highlights

• Click-in design for mounting solar modules, stable
• 25-45 degree & 0 degree mounting
• High flexibility: the angle can be freely adjusted using the telescopic tubes
• High load capacity and strong stability
• High efficiency: ideal for mounting solar panels at an angle on balcony railings
• Compatibility: our PV stand is suitable for solar modules of all sizes
• Easy to install and assemble: quick installation with
• stainless steel fasteners and precise hole placement
• TÜV Süd tested safety, certificate number: Z2 076828 0068 Rev. 00

Terrain bracket option 1 - 25-45

Adjustable braces allow you to attach your solar panels to your railing and choose a tilt angle of 25-45° for perfect alignment.

Terrain bracket option 2 - 0°

With the terrain bracket, you can easily attach a solar module and your inverter to your balcony railing. With the basic bracket, you can mount your panels parallel to the railing with a tilt angle of 0°.

Solar panel hook

• Size of hook, without connector:106x44x166mm
• Maximum size of railing:80x80mm
• Suitable for railing type: square railing
• Material of hook: 304 stainless steel
• Material thickness:2mm
• Base material:EPDM

Micro inverter hook

• Size of hook:106x170x216mm
• Maximum size of railing:80x80mm
• Suitable for railing type: square railing
• Material of hook:304 stainless steel
• Size of T-plate:170x90x2mm

Solar panel tilt angle hook

• 25-45° adjustable strut
• Dimensions (long strut) : 35 x 35 x 380 mm
• Length adjustable: 380-670 mm
• Size incl. base and connector: 105 x 35 x 479 mm
• Material: aluminium AL6005-T5
• Thickness: 1,5 mm
• Dimensions of L-connector:40.6 x 42.75 x 27.2 mm
• Dimensions of long base: 105 x 60 x 35 mm
• Max. Module width: universal
• Adjustable angle: 25-45
• 0° base
• Dimensions - bracket: 105 x 40 x 35 mm
• Material: aluminium AL6005-T5
• Thickness: 4 mm

Mounting rail

• Size of rail: 35 x 35 x 400 mm
• Material of rail: Aluminium AL6005-T5
• End cap material: EPDM
• Thickness: 1.3 mm
• Dimensions of adapter plate: 90 x 30 x 5 mm
