General description

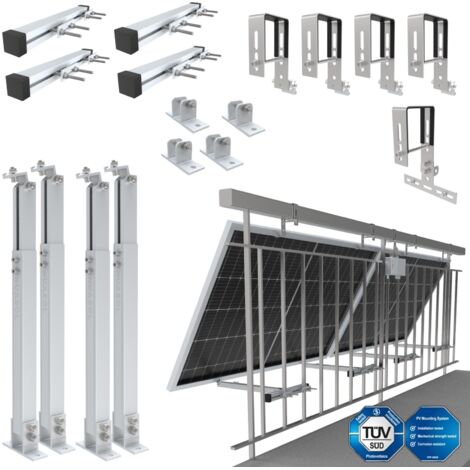

The NuaSol Balcony Power Plant Bracket is designed for securely fastening 1 or 2 solar modules and a microinverter to your balcony railing. This versatile mounting solution allows you to choose between a 0° or a 25-45° tilt angle, optimizing the efficiency of your solar panels.
Technical specifications
- Material: Stainless steel and AL6005-T5 aluminium
- Maximum railing diameter: 80 mm
- Hook size (without connector): 106 x 44 x 166 mm
- Micro inverter hook size: 106 x 170 x 216 mm
- Solar panel tilt angle hook: 25-45° adjustable strut
- Dimensions of long strut: 35 x 35 x 380 mm
- Length adjustable: 380-670 mm
- Size including base and connector: 105 x 35 x 479 mm
- Thickness of materials: 1.5 mm (strut), 2 mm (hook), 4 mm (bracket)
- Mounting rail size: 35 x 35 x 400 mm
- Adapter plate dimensions: 90 x 30 x 5 mm
Compatibility and accessories
- Universally compatible with any type of solar module
- Suitable for square railings
- Includes stainless steel fasteners for easy installation
Installation
The NuaFix system is designed for quick and easy installation. The click-in design allows for stable mounting of solar modules, and precise hole placement ensures a secure fit.
Usage
This bracket is ideal for mounting solar panels at an angle on balcony railings, maximizing sunlight exposure and energy efficiency. It is suitable for both residential and commercial applications.
Other information
TÜV Süd tested safety, certificate number: Z2 076828 0068 Rev. 00.
