General description

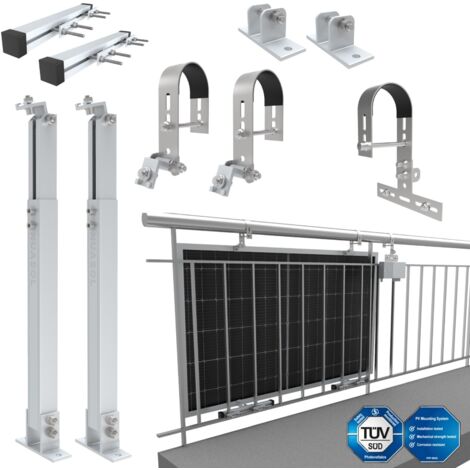

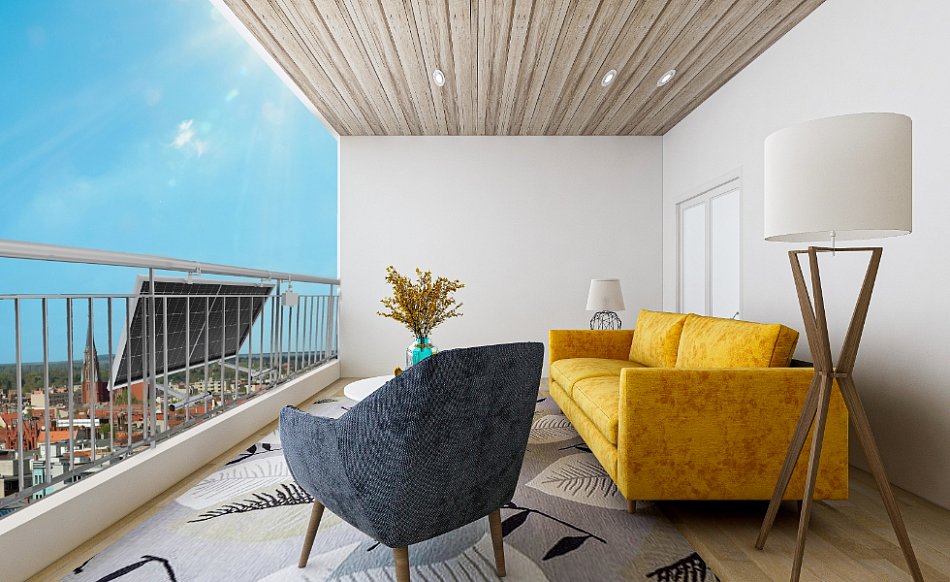

With the NuaSol Balcony Power Plant Bracket, you can easily mount 1 or 2 solar modules and your inverter to your balcony railing. This versatile solution allows you to generate your own green electricity from the comfort of your home.Technical specifications
- Maximum railing depth: 80 mm
- Material of hooks: 304 stainless steel
- Thickness of hook material: 2 mm
- Material of base: EPDM
- Dimensions of solar panel hook (without connector): 102 x 44 x 164 mm
- Dimensions of micro inverter hook: 102 x 170 x 214 mm
- Size of T-plate: 170 x 90 x 2 mm
- Dimensions of long strut: 35 x 35 x 380 mm (adjustable length: 380-670 mm)
- Size including base and connector: 105 x 35 x 479 mm
- Material of strut: aluminium AL6005-T5
- Thickness of strut: 1.5 mm
- Dimensions of L-connector: 40.6 x 42.75 x 27.2 mm
- Dimensions of long base: 105 x 60 x 35 mm
- Dimensions of 0° bracket: 105 x 40 x 35 mm
- Material of 0° bracket: aluminium AL6005-T5
- Thickness of 0° bracket: 4 mm
- Size of mounting rail: 35 x 35 x 400 mm
- Material of rail: aluminium AL6005-T5
- Thickness of rail: 1.3 mm
- Dimensions of adapter plate: 90 x 30 x 5 mm
Compatibility and accessories
Universally usable for any type of solar panel. Suitable for round balcony railings.Installation
Easy to install and assemble with quick installation using stainless steel fasteners and precise hole placement.Usage
Choose between a 0° bracket for parallel mounting or a 25-45° bracket for optimal tilt angle, maximizing the efficiency of your solar panels.Other information
