General description

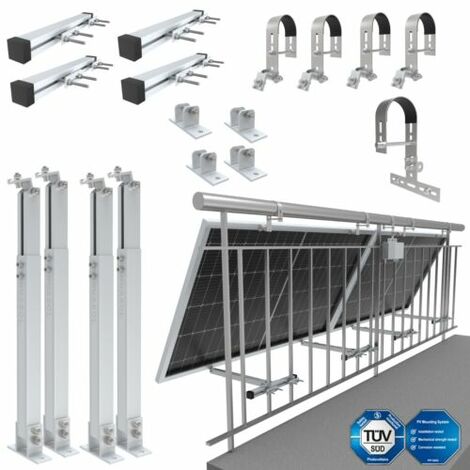

The NuaSol Balcony Power Plant Bracket is designed for securely fastening 1 or 2 solar modules and an inverter to your balcony railing. This versatile mounting solution allows you to generate your own green electricity efficiently.
Technical specifications
- Maximum railing depth: 80 mm
- Hook size (without connector): 102 x 44 x 164 mm
- Micro inverter hook size: 102 x 170 x 214 mm
- Long strut dimensions: 35 x 35 x 380 mm
- Length adjustable: 380-670 mm
- 0° base dimensions: 105 x 40 x 35 mm
- Mounting rail size: 35 x 35 x 400 mm
- Material of hooks: 304 stainless steel
- Material of strut and bracket: Aluminium AL6005-T5
- Thickness of materials: 2 mm (hook), 1.5 mm (strut), 4 mm (0° base)
Compatibility and accessories
- Universally compatible with any type of solar panel
- Suitable for round balcony railings
- Includes various mounting materials such as hanger bolts, roof hooks, and Z-brackets
Installation
The NuaFix system features a click-in design for easy installation. It allows for quick assembly using stainless steel fasteners and precise hole placement.
Usage
Choose between two tilt angle options for optimal solar panel performance:
- 0° bracket for parallel mounting to the railing
- 25-45° adjustable bracket for enhanced solar efficiency
Other information
TÜV Süd tested safety, certificate number: Z2 076828 0068 Rev. 00.
