Pump / Hot water / Air heater RWHR

Dimensions and technical details

• Housing made of galvanised steel sheet
• Size selectable: diameter 100 to 315mm
• Installation in the heat cycle of an existing heating system
• Two access panels on the water supply side
• Pipe connections with rubber-lip seal
• Water supply and return pipes with external thread 3/4"
• Air heater with aluminium fins pressed onto a copper pipe
• Max. operational temperature: 100°C
• Max. operational upstream pressure: 8 bar
• A filter box should be installed in front of the heater coil to prevent contamination and decrease in performance (please order separately)
• The PWW heater coils 100-200 are controlled by the temperature regulating system TRW 300 which contains a gate valve 3/4", a thermostate with remote adjustment and a remote sensor (sensor can be used inside the duct or room), the TRW 300 is not included in the delivery and needs to be ordered separately
• The RWHR should be planned in the direction of the flow behind the fan so that the maximum permissible motor temperature is not exceeded because of the transported medium
• The length of the ventilation duct between the fan and the RWHR should be at least one metre
• The exhaust and draining must be provided

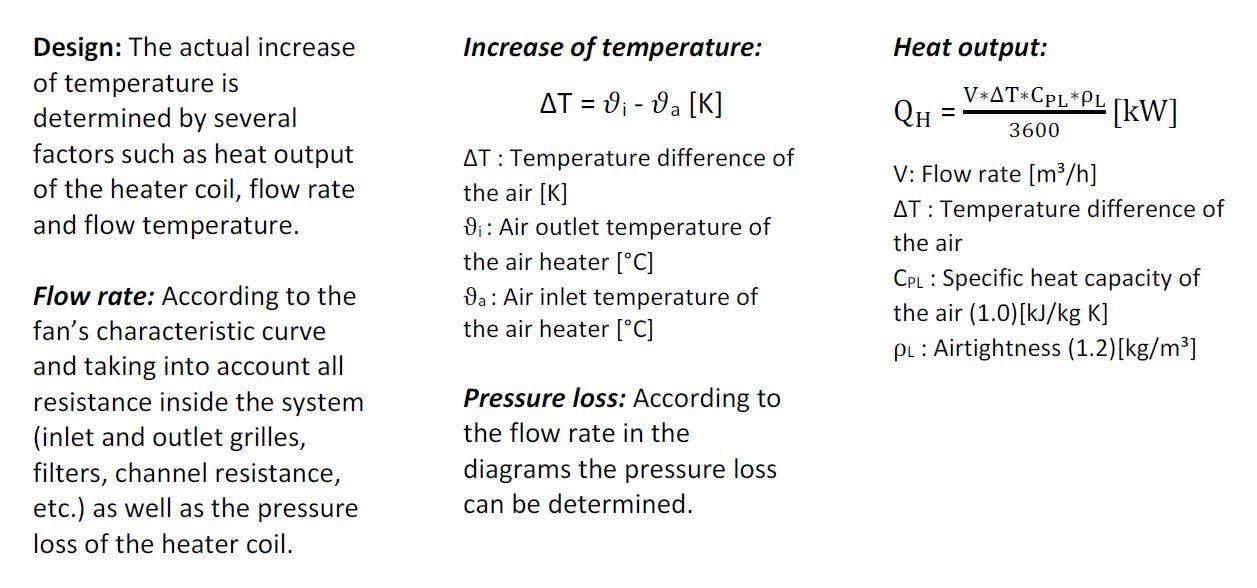

• Please note the loss of pressure caused by the heater coil
• Attention: An antifreeze protection must be provided on-site.




  Type	Item description
  RWHR 100	Air heater, galvanised steel, ø 100mm
  RWHR 125	Air heater, galvanised steel, ø 125mm
  RWHR 160	Air heater, galvanised steel, ø 160mm
  RWHR 200	Air heater, galvanised steel, ø 200mm
  RWHR 250	Air heater, galvanised steel, ø 250mm
  RWHR 315	Air heater, galvanised steel, ø 315mm
