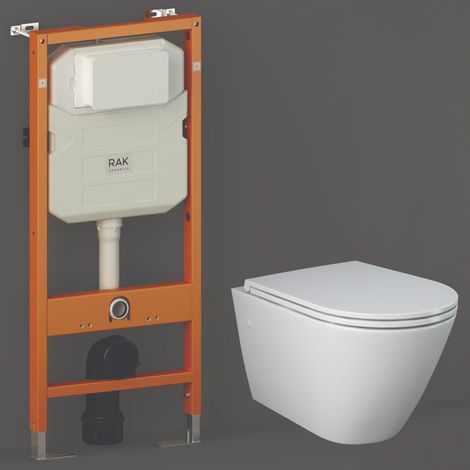

RAK Resort Rimless Wall Hung Pan with Ecofix 1140mm Toilet Frame - Slim Sandwich Soft Close Seat

Name: RAK Resort Rimless Wall Hung Pan with Ecofix 1140mm Toilet Frame - Slim Sandwich Soft Close Seat
Brand: RAK CERAMICS
SKU: FS04RAK12C+RSTWHPAN/012
Price: 468.95 GBP
Availability: InStock
Rating: 5 (2 reviews)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Heat & Plumb

Product information

Description

General description

The RAK Resort Rimless Wall Hung Pan with Ecofix 1140mm Toilet Frame features a beautifully designed toilet pan that includes a quick-release slim sandwich soft close seat. Manufactured from high-grade ceramic, this wall-hung toilet pan is designed to maximize available space and comes in an attractive white finish for universal appeal.

Technical specifications

Toilet Pan Width: 360mm

Toilet Projection: 520mm

Toilet Pan Height: 400mm

Toilet Pan Outlet: Horizontal

Outlet Connection Size: 102mm

Toilet Seat Hole Centres: 155mm

Frame Height: 1140mm

Frame Width: 500mm

Frame Depth: 150mm

Maximum operating temperature (water): 25°C

Flush volume: 6/3L adjustable to 4.5/3L

Toilet seat guarantee: 2 years

Wall hung pan guarantee: 25 years

Toilet frame guarantee: 1 year

Compatibility and accessories

Flush plate sold separately (available in our store)

Installation

Easily modified for top access to cistern

Installation wall brackets included

90-degree drainage bend

Adjustable height for different flooring construction: 0-200mm

Tool-free installation and maintenance work on concealed cistern

Water supply connection: rear or top centre

Protection cover box for service opening protects against moisture and dirt

Protection box for service opening can be cut to length

Wall fixture variable from 30 - 60 degrees

Usage

Immediate post flush possible with factory setting

Easy to clean coating on glass and metal

Other information

Toilet Type: Wall Hung

Flush Type: Dual Flush

Toilet Shape: Curved

Toilet Design: Fully Back to Wall

Toilet Features: Rim-Free Design, Soft Closing Seat

Toilet Material: Ceramic

Toilet Colour: White

Brand: RAK Ceramics

Collection: Resort

Style: Modern

Market: Domestic

EAN Barcode: 4025416359722

Manufacturer Part Number(s): RSTWHPAN/012+FS04RAK12C

Features

Brand
RAK CERAMICS
Colour
White
Material
Ceramic
Toilet accessories included
Toilet seat fittings
Adapted for PRM
No
Toilet seat features
Soft close
Compatible with soft-close toilet seat
Yes
Bowl sold separately
Yes
Wash function
No
Shape
Curve
Height of the bowl
40 cm
Width
36 cm
Integrated hand basin
No
Toilet seat material
Plastic
Bowl material
Ceramic
Supplied flush mechanism pre-assembled
No
Toilet and Bidet Set
No
Toilet drain position
Horizontal
Shut-off valve included
No
Support frame type
Wall
Flange type
Rimless
Type of bowl outlet
Horizontal
Type of toilet
Wall-hung
Type of flush mechanism
Double flush
Maximum flush water volume
6 l
Macerating toilet
No
ManoMano Reference
ME15405715
MMID
841876489488
Product code
FS04RAK12C+RSTWHPAN/012
