Rawlplug Rawlbolt® Loose Bolt M10 x 25mm, Pack of 5

Description

• The Rawlplug Rawlbolt® Loose Bolt M10/25L is a versatile expansion bolt suitable for use in cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics. It is recommended for applications requiring fire resistance. The bolt features a three-piece expanding sleeve that provides maximum expansion for optimal load capacity and safety in various substrates. This product is ideal for securing fixtures in different construction materials and ensures reliable performance in demanding environments.

Technical Specifications

• Anchor Diameter: 10mm
• External Diameter: 16mm
• Length: 90mm
• Fixture Max. Thickness: 25mm
• Hole Diameter: 11mm
• Hole Diameter in Substrate: 16mm
• Installation Torque: 27 Nm
• Wrench Size: 17
• Minimum Hole Depth in Substrate: 65mm
• Minimum Installation Depth: 60mm
• Minimum Substrate Thickness: 100mm
• Minimum Spacing: 50mm
• Minimum Edge Distance: 75mm

Compatibility and Accessories

• Compatible with various substrates such as concrete, hollowcore slabs, and ceramics
• Requires an 11mm drill bit for the hole in the substrate

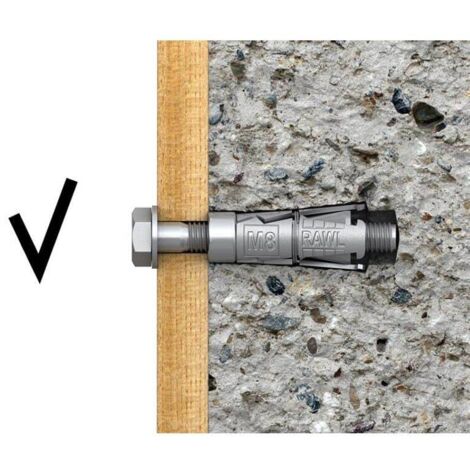

Installation

• Drill a hole of 11mm diameter to a minimum depth of 65mm in the substrate
• Insert the bolt into the hole
• Use a wrench size 17 to tighten the bolt to the specified torque of 27 Nm

Usage

• Secure fixtures in concrete, hollowcore slabs, flooring blocks, and ceramics
• Suitable for applications requiring fire-resistant anchoring

Other Information

• Pack Quantity: Bag of 5
