Rawlplug R-S1-RBL-M8/25/5 Rawlbolt Loose Bolt M8 x 25mm, Pack of 5

Description

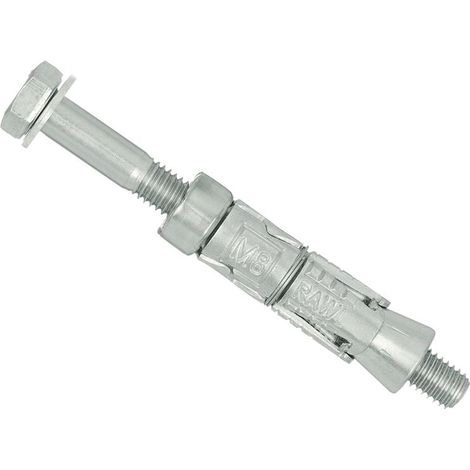

• The Rawlplug Rawlbolt® Loose Bolt M8/25L is a versatile anchor suitable for use in cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics. It is recommended for applications requiring fire resistance. The bolt features a three-piece expanding sleeve that provides maximum expansion for optimal load capacity and safety in various substrates. This product is the loose bolt version of the popular all-purpose expanding shield anchor.

Technical Specifications

• Anchor Diameter: 8mm
• External Diameter: 14mm
• Length: 80mm
• Maximum Fixture Thickness: 25mm
• Hole Diameter: 9mm
• Hole Diameter in Substrate: 14mm
• Installation Torque: 15 Nm
• Wrench Size: 13
• Minimum Hole Depth in Substrate: 55mm
• Minimum Installation Depth: 50mm
• Minimum Substrate Thickness: 100mm
• Minimum Spacing: 40mm
• Minimum Edge Distance: 60mm

Compatibility and Accessories

• Compatible with various substrates such as concrete, hollowcore slabs, flooring blocks, and ceramics
• Requires a 9mm drill bit for hole drilling

Installation

• Drill a 9mm hole in the substrate to a minimum depth of 55mm
• Insert the bolt into the hole
• Use a wrench size 13 to tighten the bolt to the specified torque of 15 Nm

Usage

• Ideal for fixing fixtures in concrete and similar materials
• Suitable for applications requiring fire-resistant anchors
