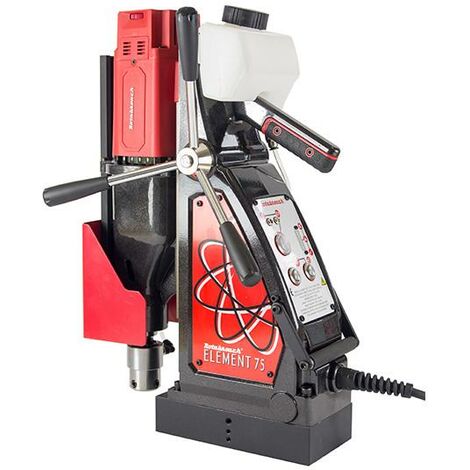

Rotabroach Element 75 110V Magnetic Drilling Machine

Features

For heavy duty operations the ‘Element 75’ is a must for drilling larger holes.
Compact, durable and more portable than other larger machines.
Suitable for drilling up to 75mm diameter by 75mm depth.
The ‘Element 75’ offers forward and reverse functionality.
The ‘Element 75’ can be supplied as a swivel base or a non-swivel option.
The Element range uses a unique dual motor protection system prolonging the machines life and preventing unwanted wear.

Specification

Model Number - Element 75/1
Motor Specification - 110V 1800W
No Load RPM - Low Gear: 70 -180 RPM / High Gear: 200-500 RPM
Max Hole Cutting Capacity - ø75 x 75mm Deep – 26mm with MT Drill
Overall Dimensions - Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight - 23.5kg
Magnetic Adhesion - 18,500N
Magnet Size - 220mm x 114mm
Safety Features - Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch

Standard Equipment

1x Rotabroach Element 75 110V Magnetic Drilling Machine

Warranty

All Rotabroach products are guaranteed for a period of 12 months from date of purchase. If your product develops a fault within this period Rotabroach will collect the item, repair or replace the item dependant on fair use and deliver the item back to you free of charge.
