General description

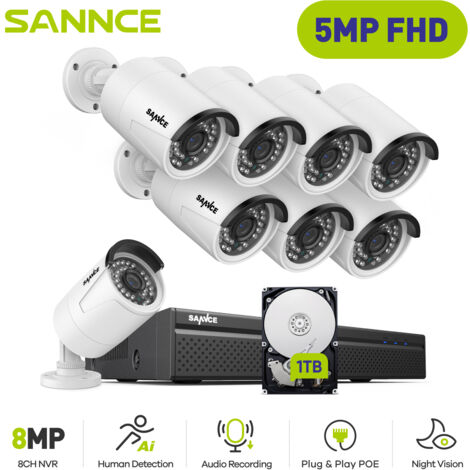

Experience enhanced security with the SANNCE 5MP H.264+ PoE NVR system, featuring 8 high-definition CCTV cameras. This comprehensive security solution is designed for both indoor and outdoor use, ensuring your property is monitored around the clock. With a robust 1TB HDD, this system provides ample storage for your recordings, while the waterproof IP66-rated cameras ensure durability in various weather conditions.Technical specifications
- Video Compression: H.265+
- IP Video Input: 8CH POE + 2CH
- Video Output: HDMI up to 4K
- Max Recording Resolution: Up to 8M (3860x2160)
- Max Playback Resolution: Up to 8M (3860x2160)
- Max Playback Channel: 4CH
- Max Playback Capacity: 4CH 3MP / 2CH 5MP / 1CH 8MP
- HDD Capacity: Up to 12TB
- Operating Power: DC48V
- Power Consumption: 10W (without HDD)
- POE: Max 15W for single port
- Working Temperature: 32 °F – 131 °F / 0 °C – 55 °C
- Dimensions (W x H x D): 10.2” x 9.6” x 1.9” / 260 x 245 x 47mm
- Weight (without hard disk): 1.68lbs / 760g
- Camera Video Resolution: 5MP (2880x1616)
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Lens: 3.6mm
- Angle of View: 70°
- Night Vision Distance: Up to 100ft / 30m
- Weatherproof Rating: IP66
- Camera Dimensions (L x W x H): 6.7” x 2.6” x 2.6” / 170 x 65 x 65mm
- Camera Weight: 0.772lbs / 350g
Compatibility and accessories
- Compatible with IP cameras supporting H.265+/H.265/H.264+/H.264 formats
- Includes 8 IPC POE cameras with 5MP resolution
Installation
- Plug & Play PoE connection for easy setup
- Connect cameras to the NVR using network cables for power, video, and internet connection
Usage
- Remote access via the SANNCE app or client on smartphones, tablets, and computers
- Live viewing and high-definition recording capabilities
- Smart alerts via email and app notifications for motion detection and video loss
