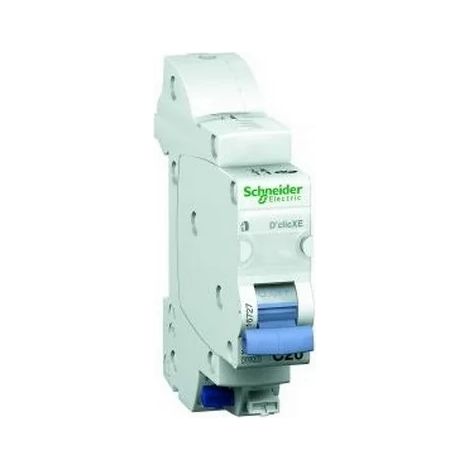

Schneider 16726 - DuoLine XE Click Circuit Breaker 1P+N 16A - C curve - plug-in

Name: Schneider 16726 - DuoLine XE Click Circuit Breaker 1P+N 16A - C curve - plug-in
Brand: SCHNEIDER ELECTRIC
SKU: 16727
Price: 21.61 GBP
Availability: InStock
Rating: 4.51 (55 reviews)

Amperage: 16 A

2 A

10 A

16 A

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by AVB Negoce

Product information

Description

General description

Circuit Breaker Application: Distribution. Product range: DUOLINE. Product type: Circuit breaker. Short device name: D'clic XE.

Technical specifications

Poles: 1P + N

Number of protected poles: 1

Neutral pole position: Left

Rated operating current: 16 A at 30 °C

Network type: AC

Trigger technology: Thermal-magnetic

Tripping curve: C

Breaking capacity: 3000 A Icn in accordance with EN 60898

Voltage: 230 V AC

Features

Brand
SCHNEIDER ELECTRIC
Amperage
16 A
Environmental certification
NF Environment
Tripping curve
C
Circuit breaker function
Single pole
Height
70 mm
Nominal intensity
AC
Material
Plastic
Number of terminals
2
Weight
100 g
Breaking capacity
3 kA
Voltage
230 V
Circuit breaker type
Breaker switch
ManoMano Reference
ME53887
MMID
487763552970
Product code
16727
EAN
3303430167266

Customer reviews

4,5

/ 55 Reviews

Reviews verified by ManoMano

JJean-Luc

Published on 24/02/2023, France

At the top super product fits very easily in a Schneider board. No need for advanced knowledge in electricity to connect it. The phase and the neutral very well identified and snapping of the wires automatically without screwdriver. I recommend

MManoMano Customer

Published on 15/07/2017, France

Be careful to understand the presentation of the product. This circuit breaker plugs into a dedicated support. It cannot be mounted on a "standard" switchboard. So good product certainly but which is not usable in my case

SStéphane

Published on 26/04/2023, France

Ask for my opinion when my package is in Lille instead of Fontaine la mallet (seine maritime). Ask me when you find it or send it back!

MManoMano Customer

Published on 17/06/2020, France

Obviously when we wait for delivery times are always long but with MANOMANO in general it does not last. Congratulations to the team, the product complies with the request. The price is very competitive compared to what is found elsewhere on the Internet. Once again bravo MANOMANO ............; which I recommend.

MManoMano Customer

Published on 09/04/2020, France

Meets my expectations. Attention provided for mounting on a specific support. There are other models with combs for food.

Eeric

Published on 21/04/2021, France

Quick installation by the plug-in concept ... I like
