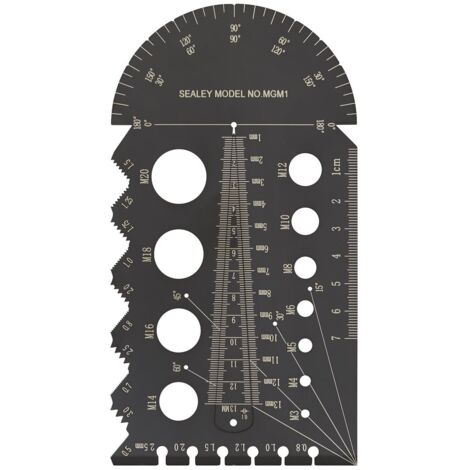

Sealey MGM1 Metric Multi-Gauge

Sealey Metric Multi-Gauge

Features:

Stainless steel multifunction thread/pitch identification gauge. Easily identify the size of bolt, drill bit or tap that is required. Checks the thickness of washers and diameter of electric wire. Use as a set square, to measure angles 0-180° and as a ruler.

Technical Details:

• Stainless steel metric multifunction thread/pitch identification gauge.
• Pitches: 3, 2.5, 2, 1.75, 1.5, 1.25, 1, 0.8, 0.7, 0.5mm.
• Bolt Screw Diameters: M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20.
• Wire Gauge: 0.8, 1, 1.2, 1.5, 2, 2.5mm.
• Square: 15°, 30°, 45°, 60°, 90°.
• Bolt Screw Length: 0-7cm.
• Tap/Drill Recommendation: M3-M20.
• Checks the thickness of washers and diameter of electric wire.
• Model No. MGM1

 • Model No. MGM1

Additional Information:

• Stainless steel metric multifunction thread/pitch identification gauge.
• Pitches: 3, 2.5, 2, 1.75, 1.5, 1.25, 1, 0.8, 0.7, 0.5mm.
• Bolt Screw Diameters: M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20.
• Wire Gauge: 0.8, 1, 1.2, 1.5, 2, 2.5mm.
• Square: 15°, 30°, 45°, 60°, 90°.
• Bolt Screw Length: 0-7cm.
• Tap/Drill Recommendation: M3-M20.
• Checks the thickness of washers and diameter of electric wire.
