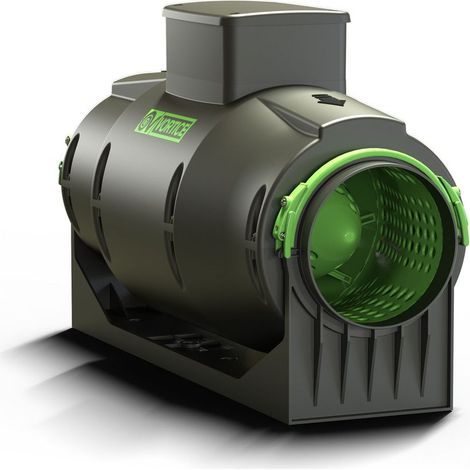

Sound-insulated inline fan Lineo 100 Quiet ES

Product out of stock

Product information

Description

Dimensions and technical details

220-240 V ~ 50/60 Hz
0-10 V interface
Housing colour: black
Housing material: polypropylene
Nominal size: 100 mm
Speed levels: 1
Wattage: 23 W
Current consumption: 0.26 A
Revolutions per minute: 2510
Airflow rate: 300 m³/h
Sound pressure level Lp-3m: 27.4 dB(A)
Total pressure Pmax: 243.2 Pa
Max. temperature of transported air: +60°C
Protection class: IP45
Insulation class: II
Weight: 3.6 kg
Thermal overload protection
Includes mounting bracket
Optional speed controller sold separately
Mounting position: any position
Fan unit can be removed quickly for cleaning and maintenance
Classification of fire E-d2 according to European Standard EN 13501-1

Lineo Quiet ES 100 dimensions

Dimensions in mm	A	B	C	Ø D	E	F	G	H	L	Ø M	N
Lineo 100 Quiet ES	210	294.5	639	97	130	235	135	120	67.5	5.5	320

Features

Brand
VORTICE
Colour
Black
Material
Polypropylene
Air flow
300 m³/h
Weight
5270 g
Voltage
230 V
Type of lawn aerator
Classic
ManoMano Reference
ME42571633
MMID
896038145895
Product code
17170
EAN
8010300171708
